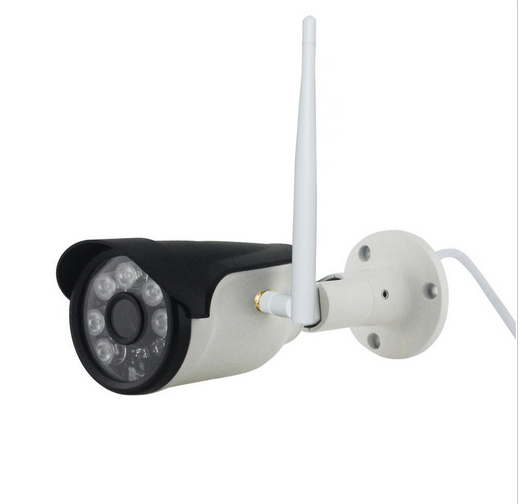

C09H4W4 1080P Waterproof wireless ip camera


High sensitivity, High signal-to-noise, 1/2.7 OV CMOS image sensor
36 PCS High power infrared LEDs
High sensitivity micron 2.0 megapixel coms
Up to 1080P(1920*1080) resolutions
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
LENS: 3.6mm lens By default, Visual range 78 degrees, and you can choose 6mm and 8mm lens too, 6mm lens:Visual range 55 degrees, 8mm lens Visual range 45 degreesn
Support WIFI/802.11b/g/n wireless
Support VLC player by RTSP,Support Global standard ONVIF

MainFeatures

High sensitivity, High signal-to-noise, 1/2.7 OV CMOS image sensor
36 PCS High power infrared LEDs
High sensitivity micron 2.0 megapixel coms
Up to 1080P(1920*1080) resolutions
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
LENS: 3.6mm lens By default, Visual range 78 degrees, and you can choose 6mm and 8mm lens too, 6mm lens:Visual range 55 degrees, 8mm lens Visual range 45 degreesn
Support WIFI/802.11b/g/n wireless
Support VLC player by RTSP,Support Global standard ONVIF
Support DDNS, P2P and three DDNS
Support Static IP and DHCP
Support Professional client, P2P client and P2P cloud service.
Support cloud storage and cloud view
Support all Phone view and record
Support the IE/firefox/Google and other browsers
Support up to 12 users browsing at the same time (Each stream supports four users)
Support remote alarm linkage, sending email, attaching picture
Build in Motion Detection , Privacy Mask , image snapshot , Title OSD
Alarm picture and record Uploaded to FTP server
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Onvif Compliant, Support CMS2.0/Dahua/ Hikvision/ Blue Iris
Smart Phone Support: iPhone, Windows Mobile, BlackBerry, Symbian, Android
MAX support 9 cameras at the same time management on the browser (Please see the screenshot below )

Specifications

OS

Parameters


kernel

System

Linux

Processor

HI 3516C

Video

Image sensor

1/2.7 2.0 MP OV CMOS image sensor

Video Codec

H.264 main profile and baseline

LEN

3.6mm, other lens option

IR LED

36 PCS IR LEDs

IR distance

20M-30M

Support mobile phone

All phone

P2P

PHONE,IE,P2P Client global Internet

Video Resolution

1080P

First stream:1920x1080

Second stream:640x352

Three stream:320x176

frame rate

PAL:25fps(50HZ), NTSC:30fps(60HZ)

Video compression

32Kbits/S~6.2Mbits/S

Min.Lux

0Lux

Store

SD card

No

Client/Browser

Support

Record

Client

support

Browser

Support

SD CARD

No

Playback

Client

support

Browser

Support

SD CARD

No

SD Card



No

Audio

Audio input

Optional

Audio output

Optional

Audio Codec

G.726/G.711

Internet

Internet face

10Base-T/100Base-TX, WIFI/802.11b/g/n wireless

Network Protocol

TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP

Access Protocol

ONVIF

Alarm

Motion detection

At most 4 respective regions

Alarm linkage

Alarm picture send E-mail, alarm images upload FTP server

Snap

Time snap

Regular support capturing images to the FTP server

safe

User management

Provide three levels of rights management (admin, user, guest), support to modify login user name and password

Other

Inter Power、consumption

DC12V 2A 、24W

Working temperature

-40℃ ~ +55℃

Working Humidity

10-95%

PACKINGLIST
Package Includes:

1 x 2.0MP Wireless Wifi IP Camera

1 x Bracket

1 x Power Adapter

1 x CD within manual and software

tina other

c-tina-feature

c-tina-feature

P2P Connection

IOTC (Internet of Things Cloud) Platform is a total solution for P2P (peer-to-peer) connection. A totally new concept in IoT connection, IOTC provides robust cross-platform connection based on P2P network connection architecture and advanced cloud computing technology via API (Application Programming Interface). Developers can utilize ready-to-use APIs to establish and develop connection between different devices and even across different operating systems.

Previously, since most network devices connections were based on Dynamic IP, DDNS (Dynamic Domain Name Service) and Port mapping were required for internet connection, an overly complicated system for non-professional users. As a result, progress in development of applications connecting to varied IP devices was severely inhibited, especially for consumer markets.

Currently, however, the IOTC Platform enables all manner of network devices, such as mobile phones, PCs, home electronic appliances, network-related facilities, smart home products, and surveillance products to easily and efficiently connect to each other, presenting an ideal solution for rapid and effective development of IoT-related products
We offer this P2P cloud services in the global , we set up P2P cloud server in Taiwan and the United States, Not only in China.

day-night-switch
IR-CUT-comparision
WYQCOMMON3
tina-S31RB
7 tina-installation
TINA-connection-a-bullet
TINA-connection-b-bullet


Client software

TINA 03
TINA 04
TINA 04


P2P Client

TINA 04

Phone Client

TINA 04
TINA 04


1 x 2.0MP Wireless Wifi IP Camera

1 x Bracket

1 x Power Adapter

1 x CD within manual and software
