kernel

System

Linux

Processor

HI 3516C

Video

Image sensor

1/2.7 2.0 MP OV CMOS image sensor

Video Codec

H.264 main profile and baseline

LEN

3.6mm,other lens option

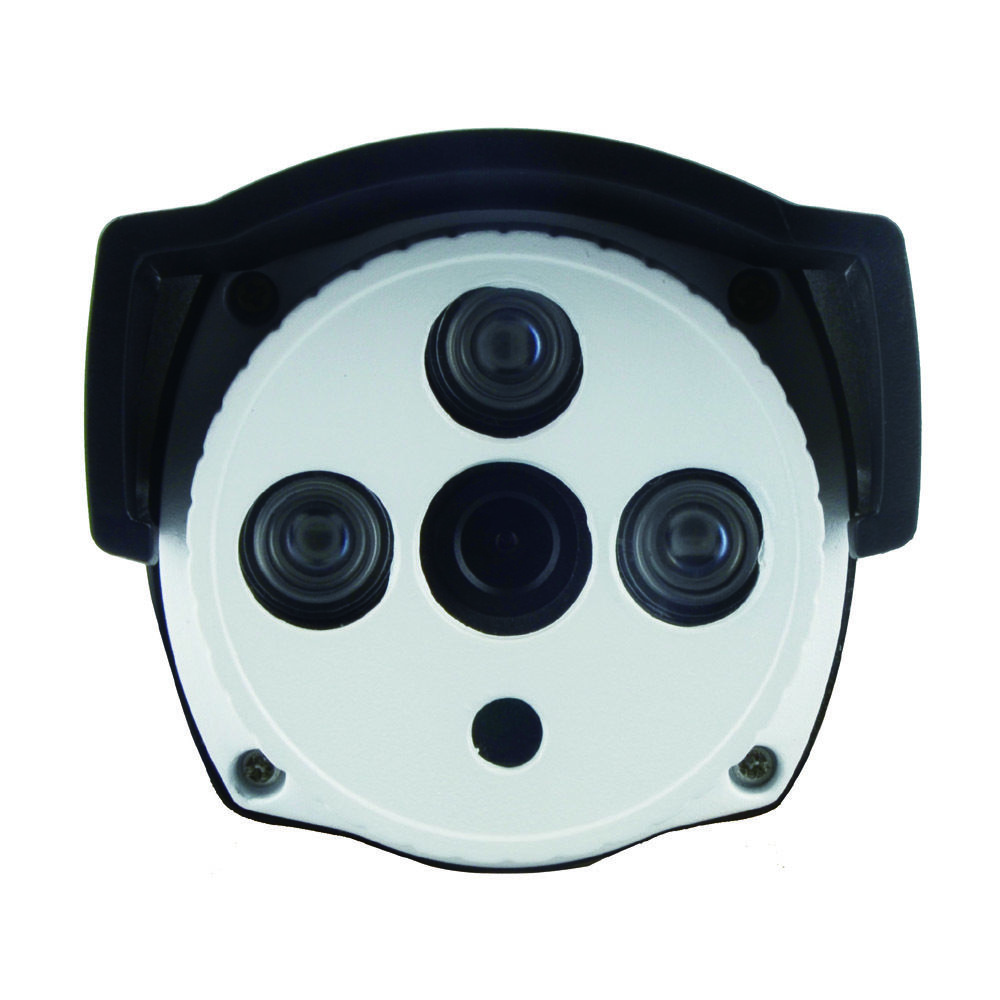

IR LED

3 PCS IR LEDs

IR distance

20-30M

Support mobile phone

All phone

P2P

PHONE,IE,P2P Client global Internet

Video Resolution

1080P

First stream：1920*1080

Second stream：640x352

Three stream：320x176

frame rate

PAL：25fps(50HZ),NTSC:30fps(60HZ)

Video compression

32Kbits/S～6.2Mbits/S

Min.Lux

0Lux

Store

SD card

No

Client/Browser

Support

Record

Client

support

Browser

Support

SD CARD

No

Playback

Client

support

Browser

Support

SD CARD

No

SD Card

No

Audio

Audio input

Optional

Audio output

Optional

Audio Codec

G.726/G.711

Internet

Internet face

10Base-T/100Base-TX,

Network Protocol

TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP

Access Protocol

ONVIF 2.3

Alarm

Motion detection

At most 4 respective regions

Alarm linkage

Alarm picture send E-mail, alarm images upload FTP server

Snap

Time snap

Regular support capturing images to the FTP server

safe

User management

Provide three levels of rights management (admin, user, guest), support to modify login user name and password

Other

Inter Power、consumption

DC12V 2A 、24W

Working temperature

-40℃ ～ +55℃

Working Humidity

10-95%
