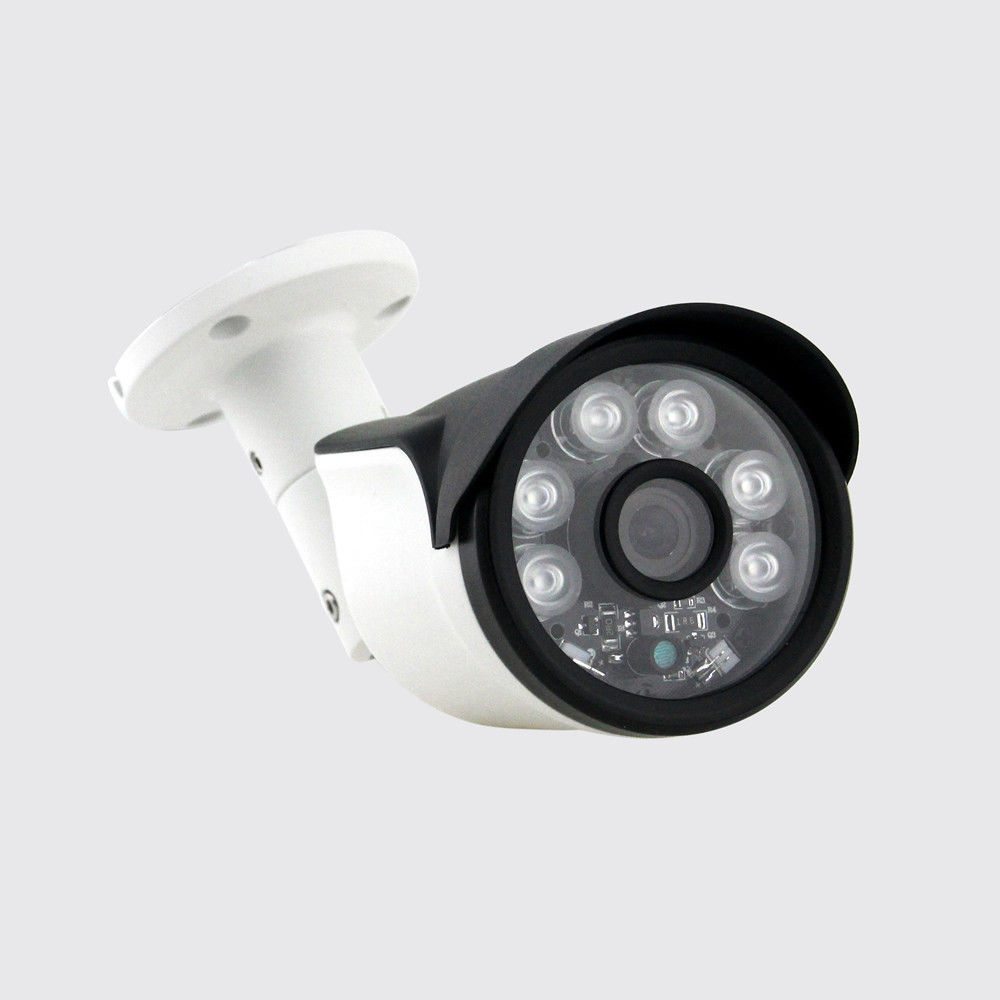

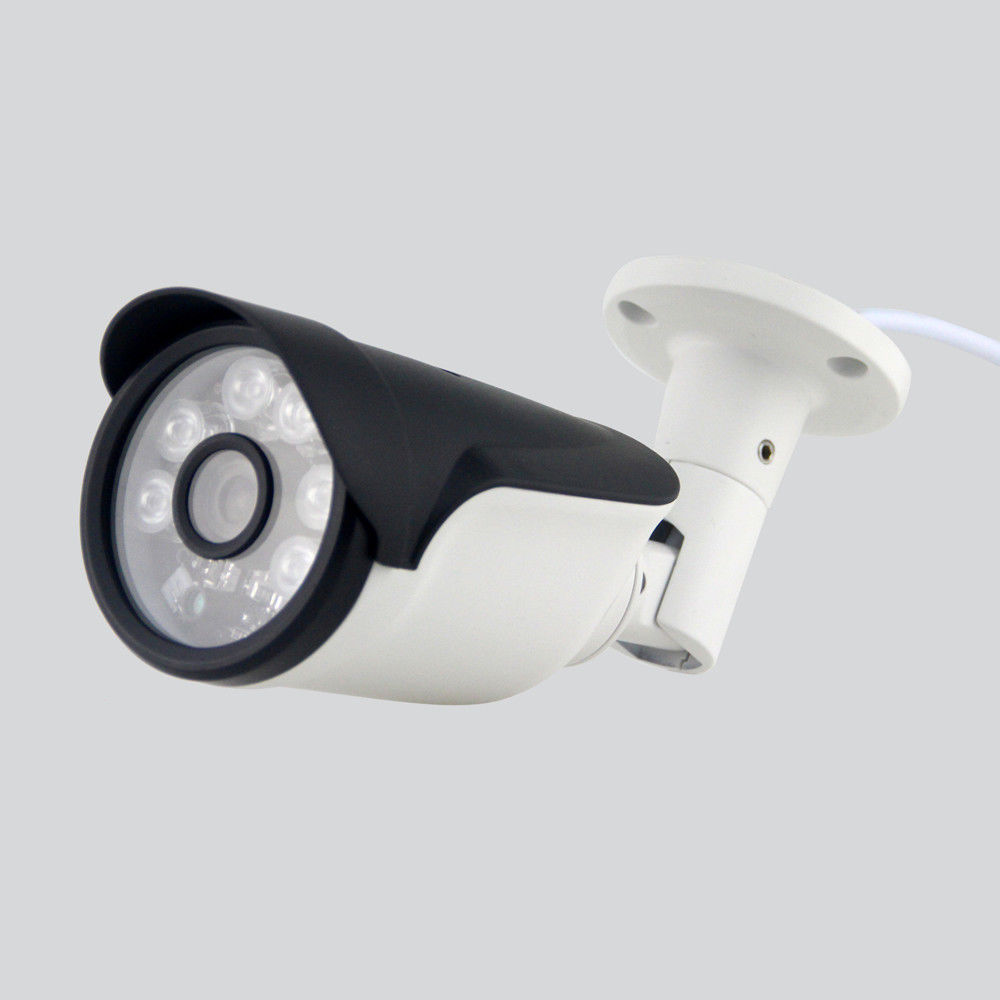

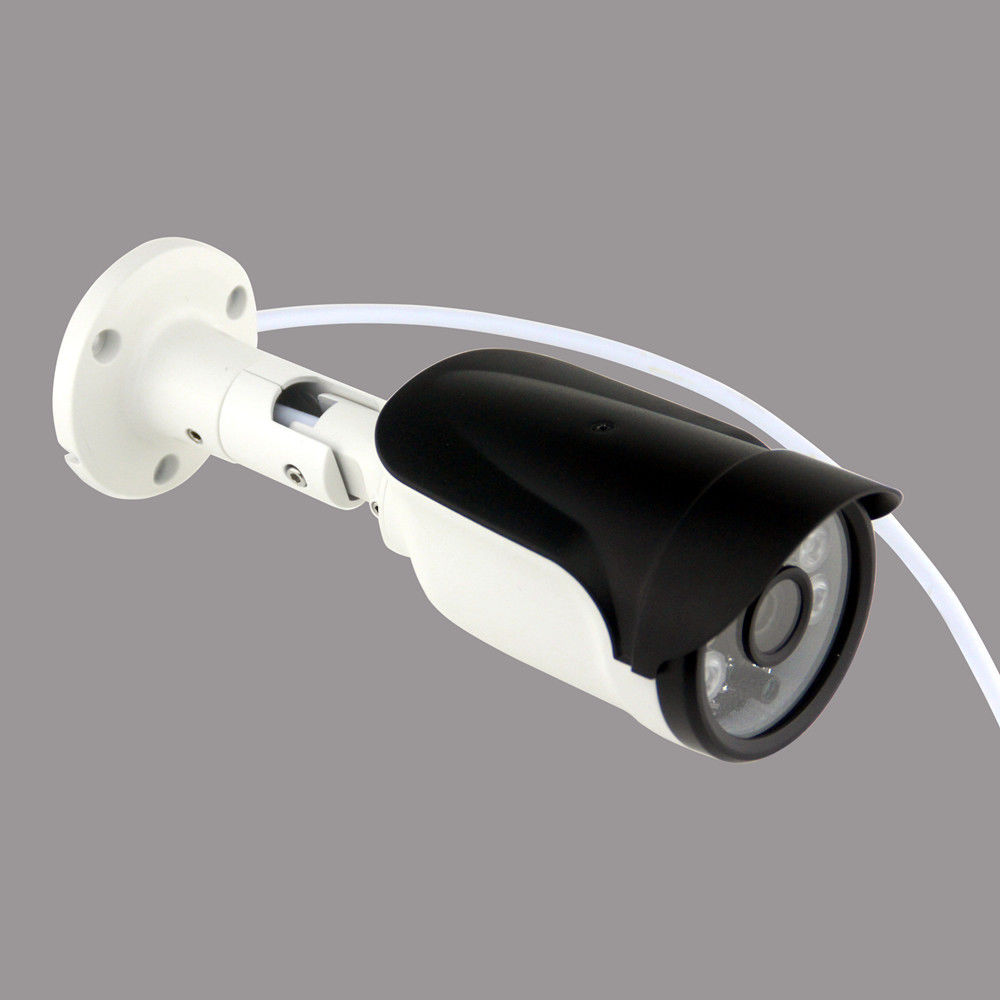

- C09H1P4 Waterproof Network IP PoE Camera IR HD 1.0MP 720P Audio ONVIF Night Vision P2P
-
-
-
OS | Parameters | |
kernel | System | Linux |
Processor | HI 3518 | |
Video | Image sensor | 1/4 1.0 MP OV CMOS image sensor |
Video Codec | H.264 main profile and baseline | |
LEN | 3.6mm,other lens option | |
IR LED | 6PCS IR LEDs | |
IR distance | 20-30M | |
Support mobile phone | All phone | |
P2P | PHONE,IE,P2P Client global Internet | |
Video Resolution | 720P | |
First stream：1280*720 | ||
Second stream：640x352 | ||
Three stream：320x176 | ||
frame rate | PAL：25fps(50HZ),NTSC:30fps(60HZ) | |
Video compression | 32Kbits/S～6.2Mbits/S | |
Min.Lux | 0Lux | |
Store | SD card | No |
Client/Browser | Support | |
Record | Client | support |
Browser | Support | |
SD CARD | No | |
Playback | Client | support |
Browser | Support | |
SD CARD | No | |
SD Card | ||
No | ||
Audio | Audio input | Support(Need extra microphone) |
Audio output | Support(Need extra speaker) | |
Audio Codec | G.726/G.711 | |
Internet | Internet face | 10Base-T/100Base-TX, |
Network Protocol | TCP/IP，HTTP，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP | |
Access Protocol | ONVIF 2.3 | |
Alarm | Motion detection | At most 4 respective regions |
Alarm linkage | Alarm picture send E-mail, alarm images upload FTP server | |
Snap | Time snap | Regular support capturing images to the FTP server |
safe | User management | Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
Other | Inter Power、consumption | Support IEEE802.3af/at,Power supply mode support POE 1236/4578.and please use standard DC48V POE power supply for POE switches |
Working temperature | -40℃ ～ +55℃ | |
Working Humidity | 10-95% | |
Coming soon!
1 x 1.0 MP Outdoor POE IP Camera
1 x Metal Bracket
1 x CD within manual and software
