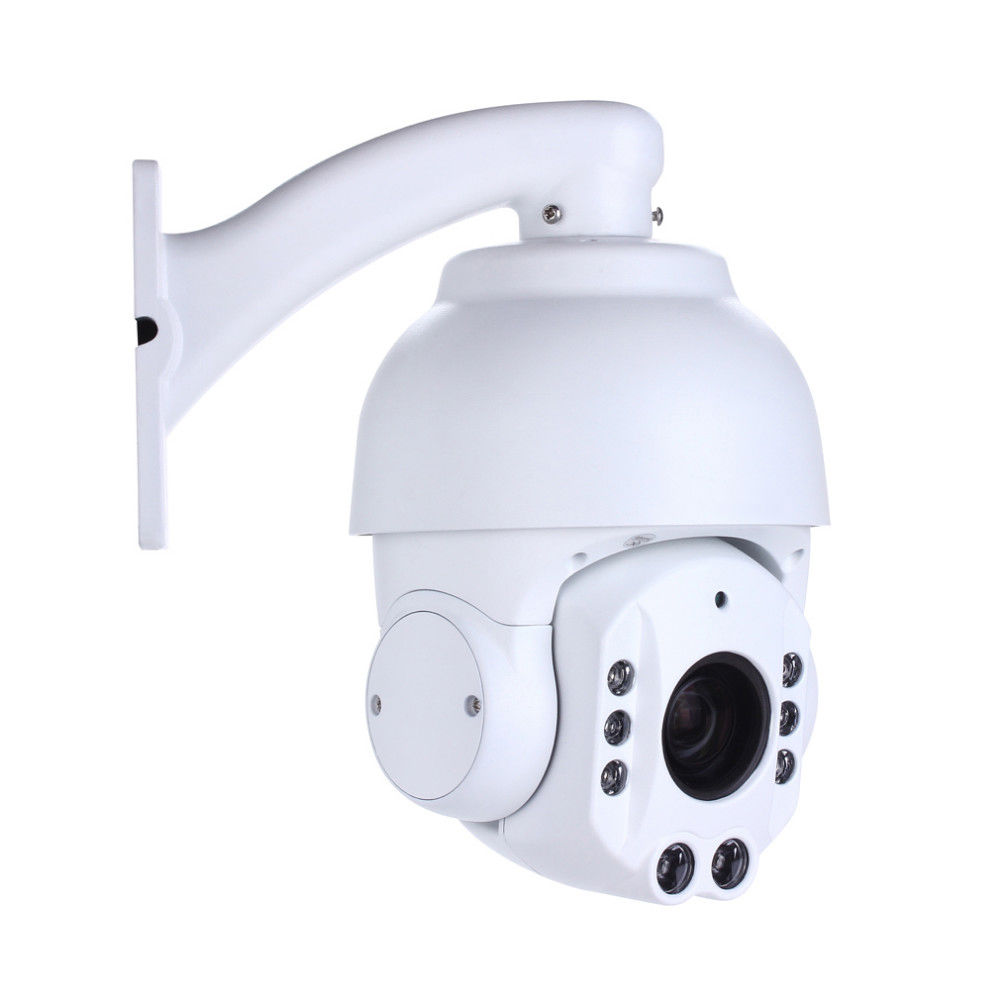

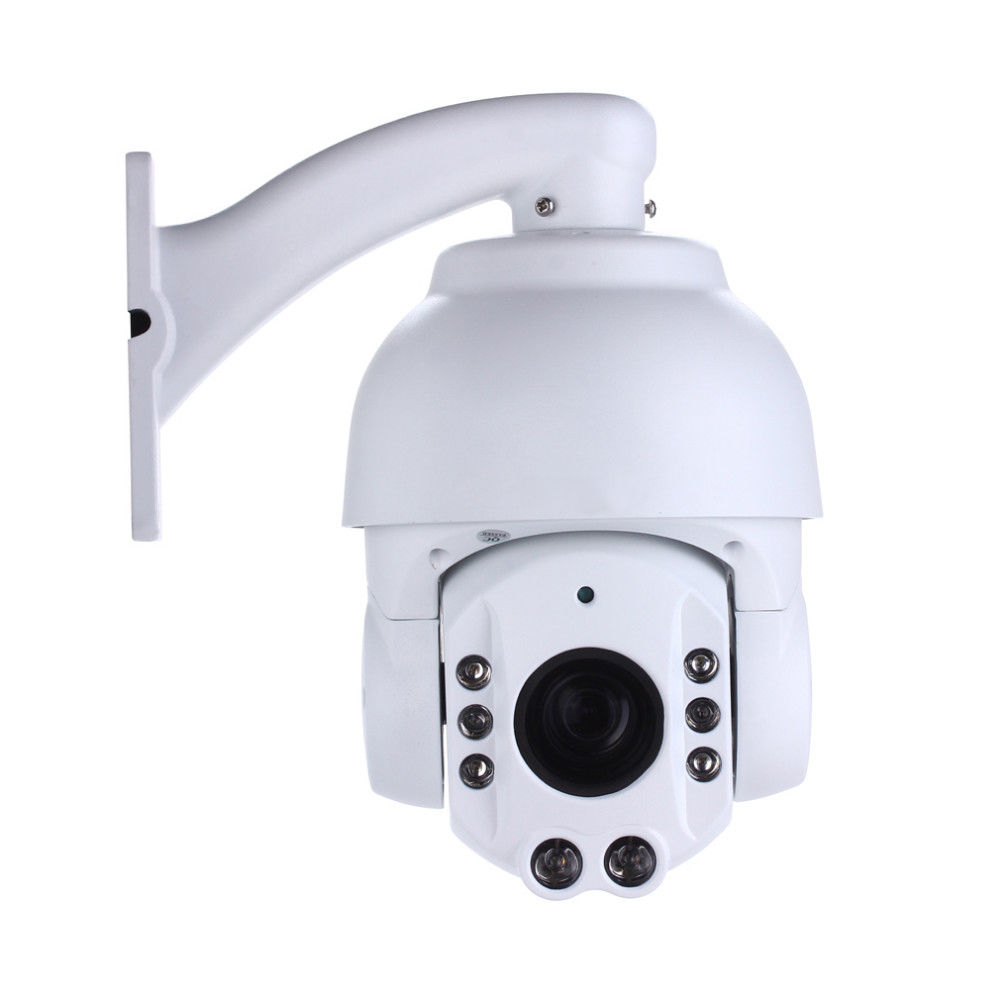

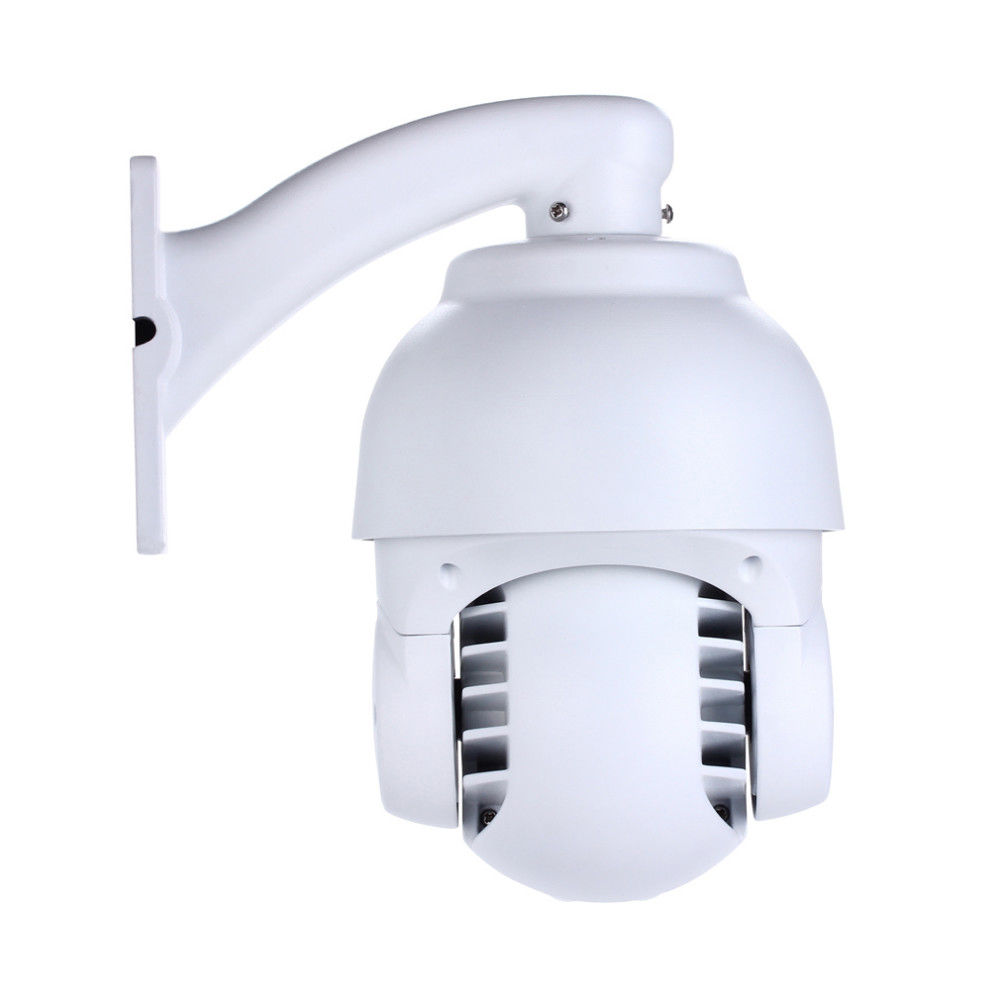

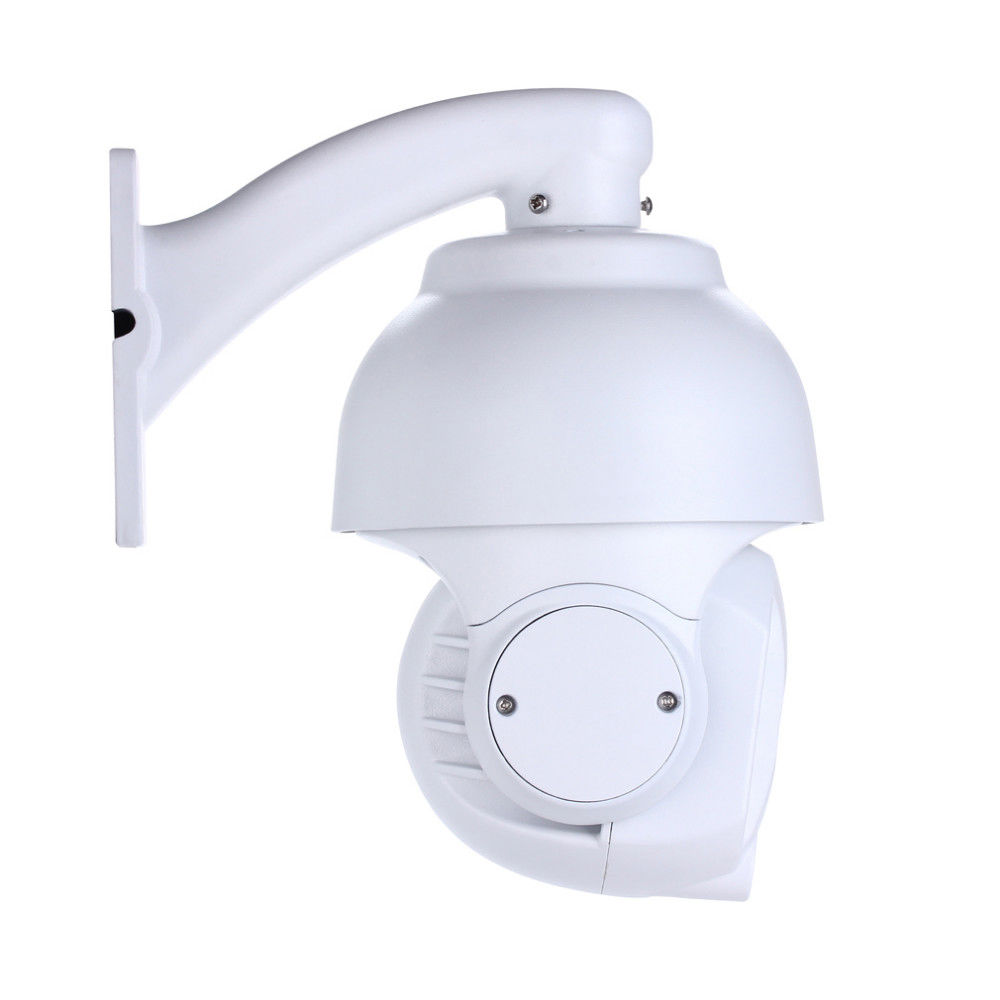

P01X2LP4 POE 20X Zoom Outdoor HD 1080P PTZ IP Speed Dome Camera SONY CMOS 150M IR Audio

无标题文档

MainFeatures

20x IP camera Features
1, High sensitivity, high signal-to-noise,1/2.8 sony 322 Super low illumination CMOS image sensor.
2, LENS: 20x Optical Zoom f=4.7mm-94.0mm.
3, HI3516 Processing chip.
4, High sensitivity micron 2.0 megapixel coms.
5, Up to 1080P(1920*1080) resolutions.
6, H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system.
7, Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS, DNS, NTP,UPNP and so on.
8, Support ONVIF 2.2.
9, Support DDNS,P2P and three DDNS.
10, Support sending email, attaching picture.
11, Alarm picture and record Uploaded to FTP server.
12, Timing captured picture to FTP server.
13, Support Static IP and DHCP.
14, Support P2P Cloud.
15, Support Professional client and P2P client.
16, Support the IE/Safari/firefox/Google and other browsers.
17, Support Cloud view.
18, Support all Phone view and record.
19, Only 1 network port is used for IE Browsing, stream transmiting and command access, convenient for router setting.
20, Support up to 12 users browsing at the same time(Each stream supports four users).
21, Support remote alarm linkage
22, Support Audio input, comes with microphone.
23, Support POE (Power Over Ethernet)IEEE 802.3at.Please use IEEE 802.3at model POE switches.POWER 25.5W.
24, 2 long distance laser lights, 6 infrared lights, night vision 150M

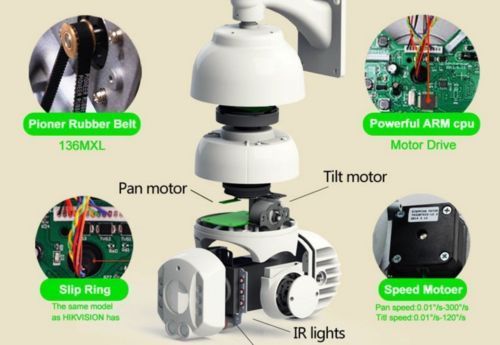

PTZ Features
1, Auto identification protocol, baud rate, eliminate the disadvantage of using dial switch traditionally.
2, Automatically identify 485 communication line straight polarity and reversed polarity and fix the major error in installation.
3, Built-in heater and cooling fan, speed dome constant temperature 5-20 degrees (standard configuration).
4, 128 memory points and every point allows independent dimming and power off of memory light. Provide abundant programmable control modes.
5, Night vision range reaches 150 meters.
6, Horizontal max speed: 40°/S Vertical max speed: 40°/S.
7, Include 4 groups and a total of 64 preset positions. Each group contains 16 positions, each of which can be programmed separately.
8, Include 58 pattern scanning memory points, each of which can wait for 0 to 4 minutes and allows combined programming and random memory.
9, 360-degree scanning, watch time is programmable.

Specifications

20x ip Camera parameter

Sensor

1/2.8" SONY 322 CMOS

Video Standard

50Hz:25fps(1920×1080),25fps(1280×720)

60Hz:30fps(1920×1080),30fps(1280×720)

Min. Illumination

Color: 0.05Lux@F1.6, B/W: 0Lux@F1.6

Electronic Shutter

1/1 ~ 1/30000s

Day/Night

Support IR-CUT

Scan System

Row by row

Synchronous

Internal synchronous

Video Output

Digital signal (Y/Cb/Cr 4:2:2 via LVDS)

S/N Ratio

>50dB(AGC Off,W eight ON)

Iris Control

Auto

Backlight compensation

Open/Close

White Balance

Auto

Slow Shutter

Support

Slow Exposal

Support

Exposal Mode

Auto

Privacy Masking

Support

WDR

Support

Gain Setting

Support

Gain Contro

Auto

Sharpness

Support

SD card

Option (MAX 32GB)

Adjustment

auto

Focusing

Auto/Manual/One-time auto-focus

Noise Reduction Lev el

0/1/2/3/4/5

Zoom Speed

4S

Focus Control

Manual/Auto

Lens Initialization

Built-in

Optical Zoom

20x

LENS

4.7mm-94.0mm;

Min.Focus distance

100mm ~1000mm (Close focus ~ Far focus)

Horizontal Angle of View

Lev el: 55.4~2.90

Network

1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc...

Function

Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, wnload/playback, JPEG snapshot, CMS, MYEYE and SDK for second evelopment

Storage Environment

(-30°C ~+70°C/20﹪to 95﹪RH)

Working Environment

(-20°C ~ +60°C/20﹪to 80﹪RH)

POE

POE IEEE 802.3at.

Power Consumption

24W

PACKINGLIST
Package Includes:

1 x 4.5 inch 2.0MP POE PTZ Speed Dome IP camera
            1 x Micriophone
            1 x 1 to 2 power supply cable
            1 x Converter
            1 x Bracket
            1 x CD within manual and software

tina other

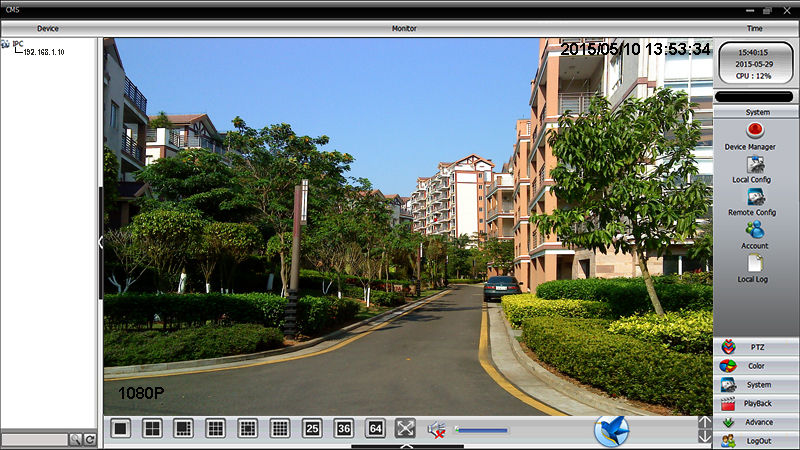

Client Software Interface

day-night-switch

PTZ ip camera Dimming Function Preview:(Dimlight Support 0-64 level)
IR-CUT-comparision

WYQCOMMON3

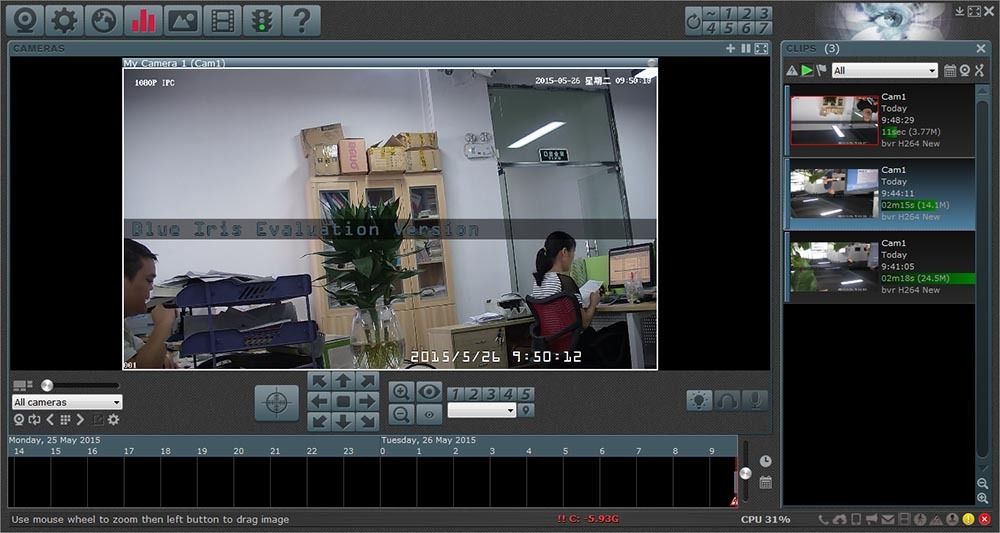

Blue Iris 4.0 Sepup and Preview

tina-S31RB

tina-S31RB

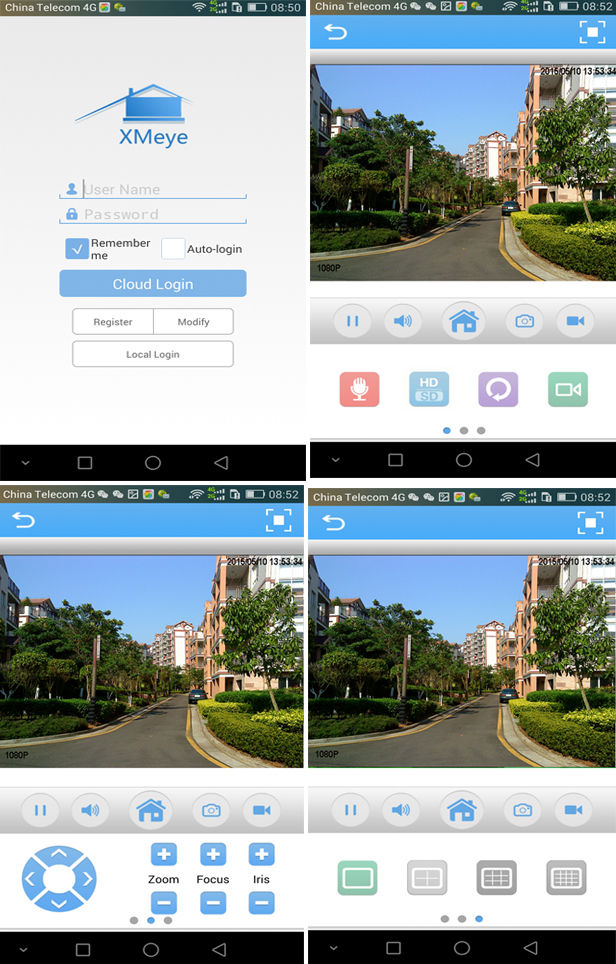

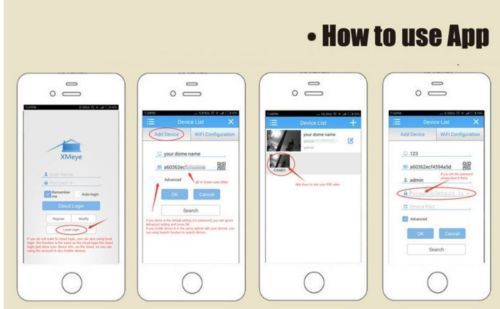

Phone APP Preview

7 tina-installation

Coming soon!

1 x 4.5 inch 2.0MP POE PTZ Speed Dome IP camera
1 x Micriophone
1 x 1 to 2 power supply cable
1 x Converter
1 x Bracket
1 x CD within manual and software

Coming soon!
