P01X2S4 20X ZOOM HD 1080P 2.0MP Outdoor PTZ IP Speed Dome Camera 150M IR Audio 32GB SD

无标题文档

MainFeatures

20x IP camera Features
1, High sensitivity, high signal-to-noise,1/2.8 sony 322 Super low illumination CMOS image sensor.
2, LENS: 20x Optical Zoom f=4.7mm-94.0mm.
3, HI3516 Processing chip.
4, High sensitivity micron 2.0 megapixel coms.
5, Up to 1080P(1920*1080) resolutions.
6, H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system.
7, Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS, DNS, NTP,UPNP and so on.
8, Support ONVIF 2.2.
9, Support DDNS,P2P and three DDNS.
10, Support sending email, attaching picture.
11, Alarm picture and record Uploaded to FTP server.
12, Timing captured picture to FTP server.
13, Build-in 32GB SD card.
14, Support P2P Cloud.
15, Support Professional client and P2P client.
16, Support the apple computer.
17, Support the IE/Safari/firefox/Google and other browsers.
18, Support Cloud view.
19, Support all Phone view and record.
20, Only 1 network port is used for IE Browsing, stream transmiting and command access, convenient for router setting.
21, Support up to 12 users browsing at the same time(Each stream supports four users).
22, Support remote alarm linkage
23, Support Audio input, comes with microphone.
24, 2 long distance laser lights, 6 infrared lights, night vision 150M

PTZ Features
1, Auto identification protocol, baud rate, eliminate the disadvantage of using dial switch traditionally.
2, Automatically identify 485 communication line straight polarity and reversed polarity and fix the major error in installation.
3, Built-in heater and cooling fan, speed dome constant temperature 5-20 degrees (standard configuration).
4, 128 memory points and every point allows independent dimming and power off of memory light. Provide abundant programmable control modes.
5, Night vision range reaches 150 meters.
6, Horizontal max speed: 240°/S Vertical max speed: 40°/S.
7, Include 4 groups and a total of 64 preset positions. Each group contains 16 positions, each of which can be programmed separately.
8, Include 58 pattern scanning memory points, each of which can wait for 0 to 4 minutes and allows combined programming and random memory.
9, 360-degree scanning, watch time is programmable.

Specifications

20x ip Camera parameter

Sensor

1/2.8" SONY 322 CMOS

Video Standard

50Hz:25fps(1920×1080),25fps(1280×720)

60Hz:30fps(1920×1080),30fps(1280×720)

Min. Illumination

Color: 0.05Lux@F1.6, B/W: 0Lux@F1.6

Electronic Shutter

1/1 ~ 1/30000s

Day/Night

Support IR-CUT

Scan System

Row by row

Synchronous

Internal synchronous

Video Output

Digital signal (Y/Cb/Cr 4:2:2 via LVDS)

S/N Ratio

>50dB(AGC Off,W eight ON)

Iris Control

Auto

Backlight compensation

Open/Close

White Balance

Auto

Slow Shutter

Support

Slow Exposal

Support

Exposal Mode

Auto

Privacy Masking

Support

WDR

Support

Gain Setting

Support

Gain Contro

Auto

Sharpness

Support

SD card

Build-in 32GB SD card

Adjustment

auto

Focusing

Auto/Manual/One-time auto-focus

Noise Reduction Lev el

0/1/2/3/4/5

Zoom Speed

4S

Focus Control

Manual/Auto

Lens Initialization

Built-in

Optical Zoom

20x

LENS

4.7mm-94.0mm;

Min.Focus distance

100mm ~1000mm (Close focus ~ Far focus)

Horizontal Angle of View

Lev el: 55.4~2.90

Network

1*RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc...

Function

Support WEB config, OSD, real-time video transfer, record and pop up by motion detect and alarm I/O, wnload/playback, JPEG snapshot, CMS, MYEYE and SDK for second evelopment

Storage Environment

(-30°C ~+70°C/20﹪to 95﹪RH)

Working Environment

(-20°C ~ +60°C/20﹪to 80﹪RH)

Power Supply

DC 9V-12V(suggest 12V)

Power Consumption

24W

PACKINGLIST
Package Includes:

1 x 4.5 inch 2.0MP PTZ High Speed Dome IP camera
1 x Build-in 32GB SD card

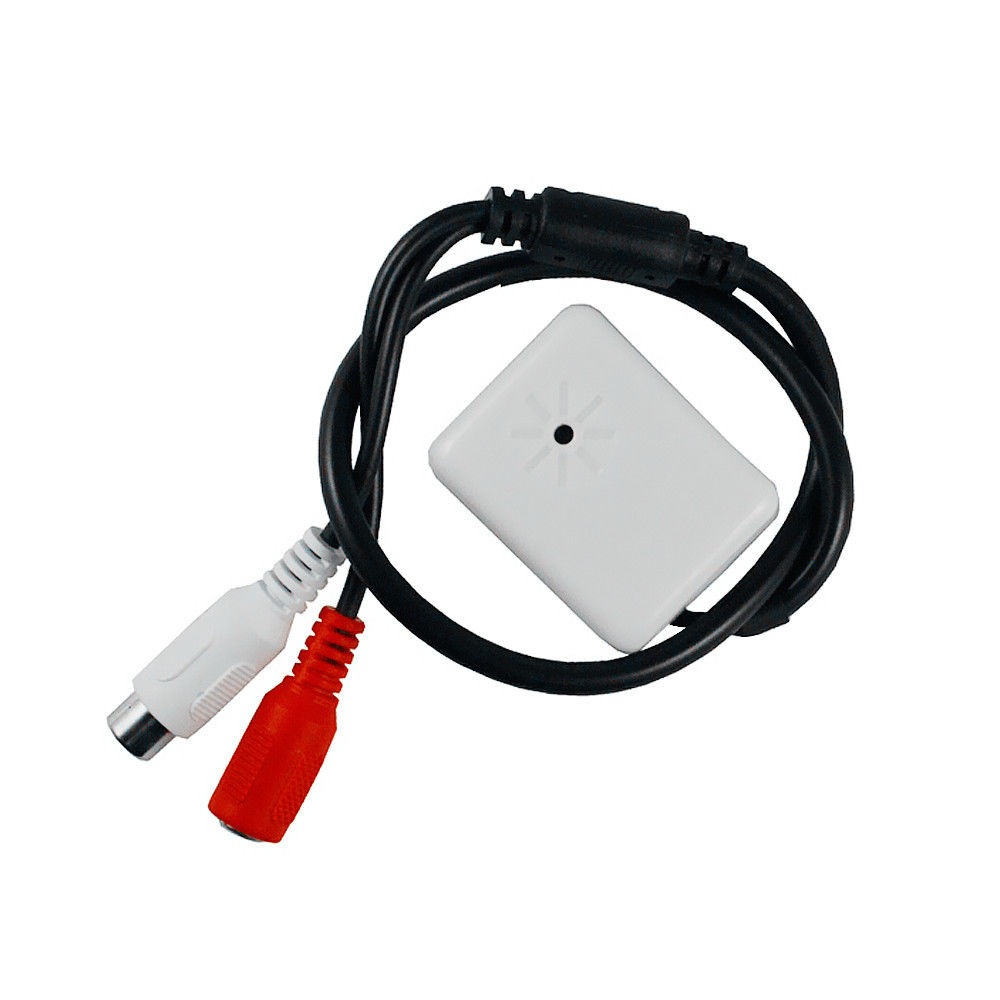

1 x Micriophone
1 x 1 to 2 power supply cable
1 x Converter
1 x Power Adapter
1 x Bracket
1 x CD within manual and software
