P06A24T20 ESUNSTAR Auto Tracking 20X Zoom HD 1080P 2MP PTZ IP Speed Dome Camera SONY CMOS

无标题文档

MainFeatures

Special Features:
1, High definition H.264 video compression, save network bandwidth and hard disk storage space, M-JPEG video streaming output at full frame speed.
2, High Sensitivity 1/2.8 Sony supper Low illumination 322 CMOS sensor, 20X optical zoom, auto tracking and intelligent focus.
3, Support local and remote alarm linkage, mobile sensitivity detection alarm, regional block alarm.

Main Features:
1, Aluminum-titanium alloy double case construction waterproof IP66.
2, Pan 0.01~360°/S, Tilt 0.01o~120°/S, Preset: 360°/S (high speed dome).
3, Built-in Semi-conductor Heater/Fan work in temperature rang -30 to +60 degree.
4, PWM cooling fan vari-speed temperature control.

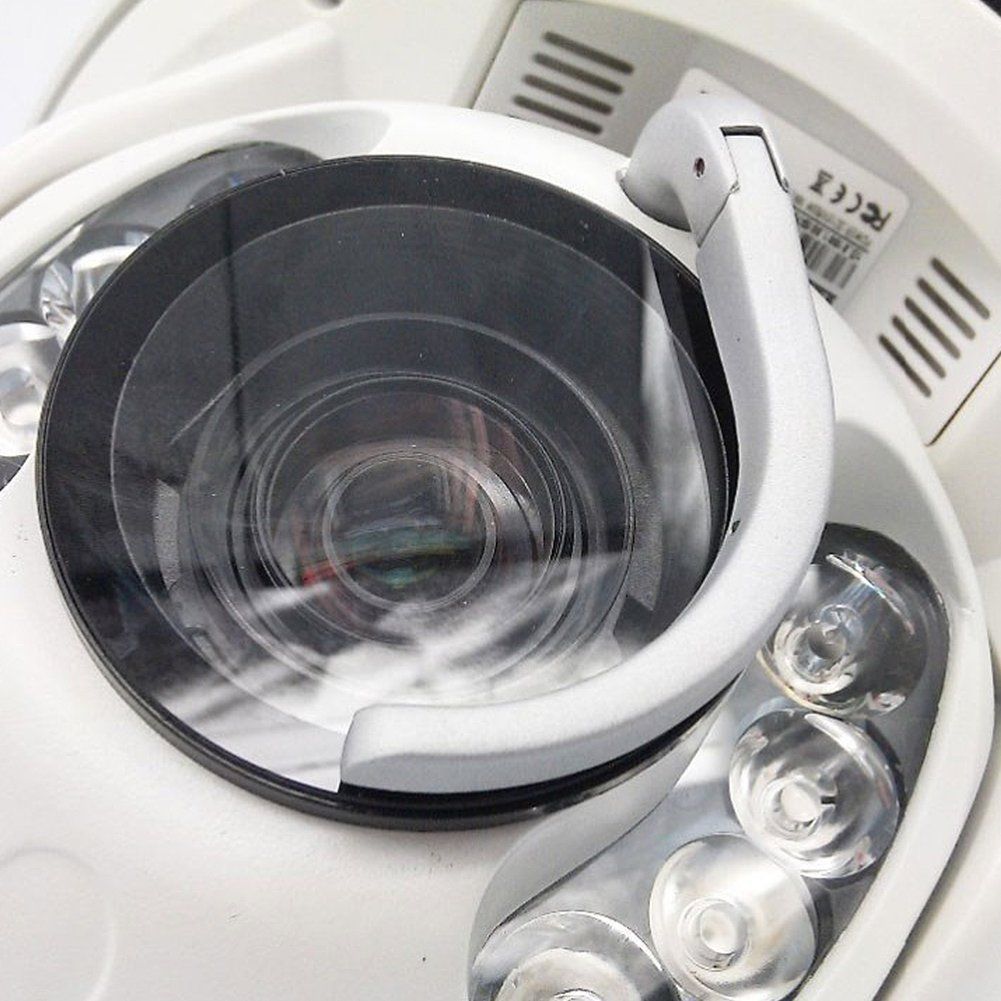

5, Wiper will assure you to get the clear picture even under the raining and snowing day.
6, Pan Tilt accuracy +/-0.1°, 256 preset positions.
7, 8 cruising tracks, each cruising track has 32 presets.
8, Multi-Protocol through RS485 or coaxial cable.

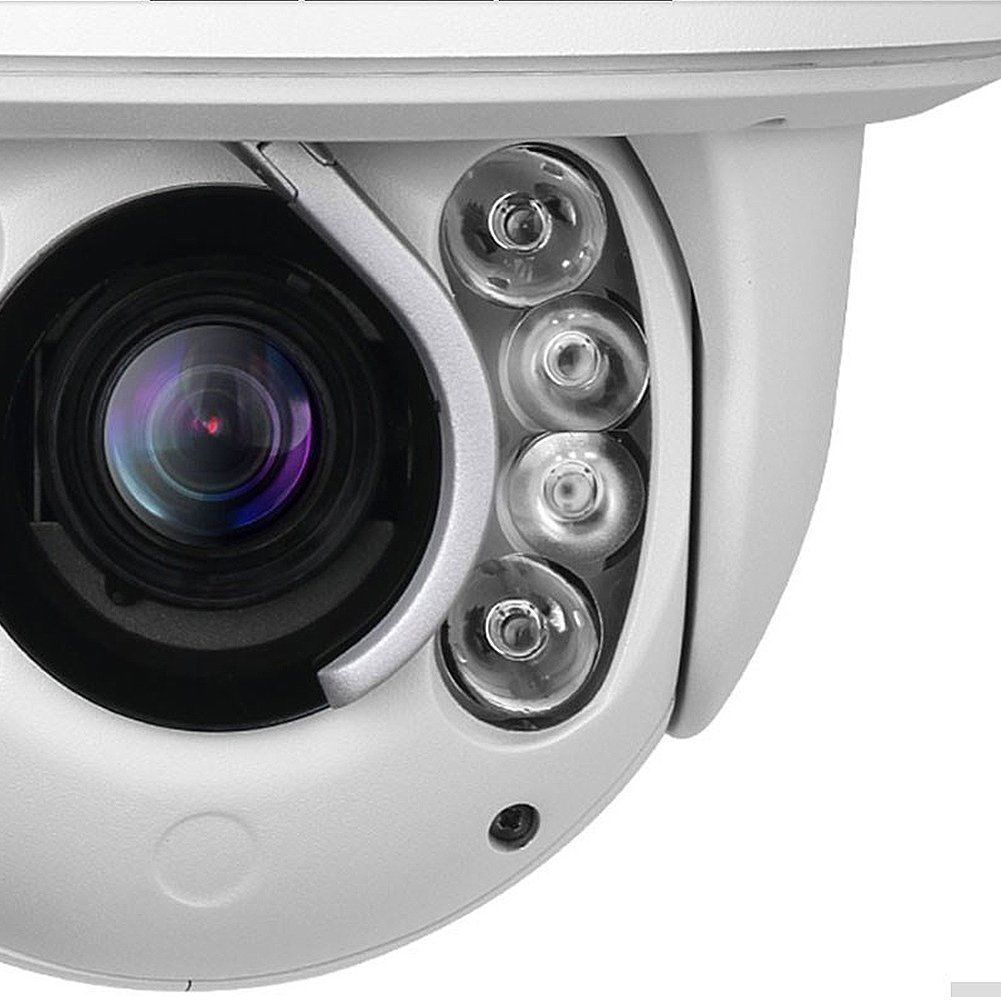

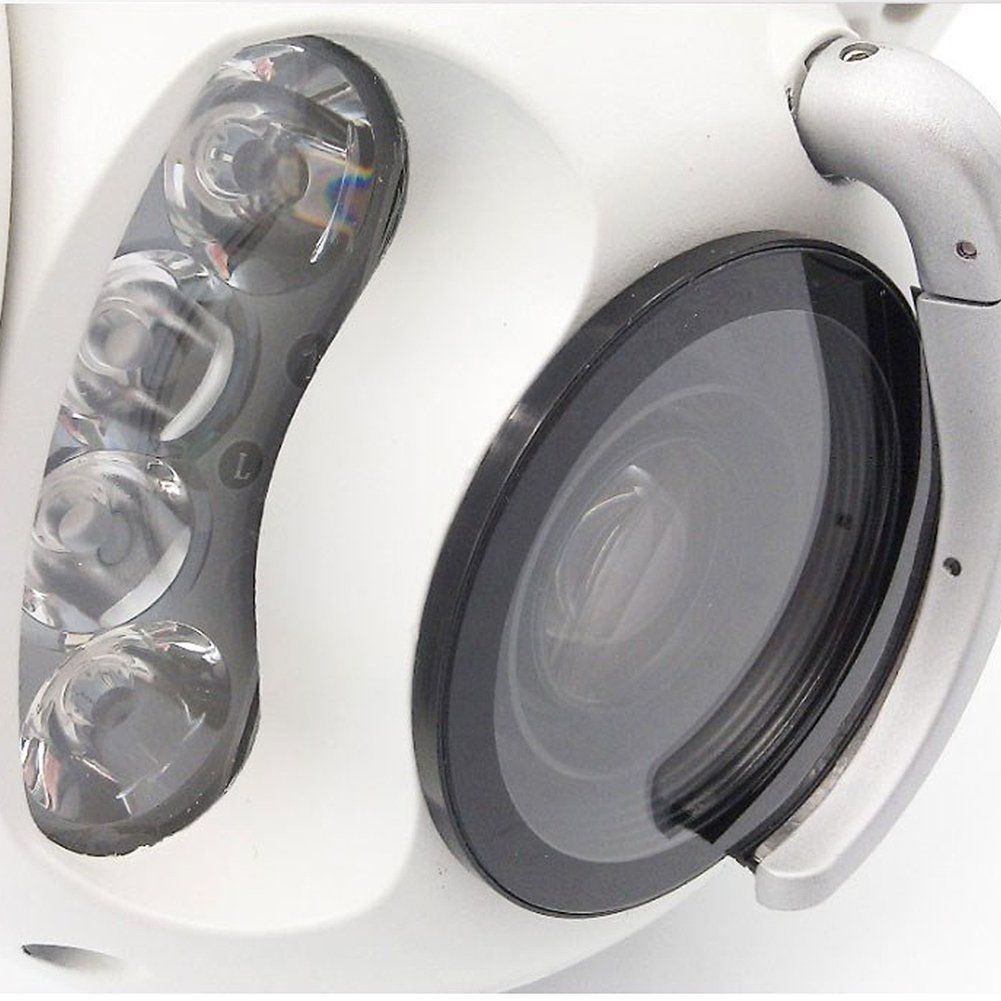

9, IR LED Array is the best solution in night vision, this camera with two groups of IR LEDs, one with wider angle for close, one with narrow angle for further. IR effect range up to 150meters.
10, Auto Compatible PELCO_P, PELCO_D compatible.
11, Guard Location: this speed dome camera will rotate back to preset position after a period of vacant time.
12, Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions.
13, Employed advanced safeguard circuit to prevent the camera damaged by instantaneous pulsing signals such as surge or lightning strike...etc.

Integrated Super Speed PTZ Rotator:
1, Delicate stepping motor, stable, sensitive and accurate.
2, 360° Pan and 90° Tilt range (auto-flip) without blind area.
3, Near / far IR Light auto matches camera zoom in/out.
 Built-in High Definition Day/Night Camera
1, Auto iris, auto back light compensation.
2, Auto/manual white balance.
3, Auto/manual brightness control.
4, Auto/manual focus.

Cruising Track:
       Preset positions can be programmed and recalled in a set of sequences. This sequence can be set to let the camera scan from one position to the next in a cycle at a set speed. This feature is called the “auto cruise”, It supports up to 8 cruising tracks, each cruising track with 32 presets.

3D Positioning:
The dome automatically return to preset position if there is no operation in s period of vacant time.
Coordinates and Directions Display
1, Auto Tracking: The dome will automatically fix and track the moving object according to the user's setup via OSD.
2, Motion Detection: The dome will detect the changes in the defined video zone and trigger alarm. It supports to 8 video Locations, each with 4 detection zones.
3, Focus Control: The default setting is auto focus. camera will auto focus based on center of the video display to get the clear image. In some special occasions, the user could do the manual focus to get the desired image effect.
4, Auto Iris Control: Auto Iris is aiming to detect the environmental lights condition and adjust the iris to get the stabilized brightness of the image.
5, Auto/Manual White Balance Auto/Manual WB adjust depending on the environment light changes.
6, Day and Night Switch: Speed dome camera can auto switch according to the environmental illumination changes.
7, OSD Setup: Call upon preset No.95 to enter into OSD menu setup interface. Click “Focus” to choose menuitem and click “Iris” to set menu ontents.

Specifications

1/2.8" SONY 322 CMOS

Resolution

1080P(1920X1080)

Mini Illumination

0.05 Lux (Color) (F1.6,AGC ON), 0.01 Lux (B/W) (F1.6,AGC ON)

Lens

f=4.7~94 mm

IRIS

F1.6~F3.5

Angle of View

61.4°(wide) ~ 2.9°(tele)

Min Object Distance

10mm~1500mm

Optical Zoom

20x

Electronic Shutter

1/1~1/10,000s

Day/Night

ICR (Auto/color/black)

Focus

Auto/Manual

AGC

Auto/Manual

BLC

Auto/Manual

White balance

Auto/Manual

SNR

>52dB

WDR

Support

Mirror Image

Level, Tilt, Centre

Noise Reduction

3D

NETWORK PARAMETER

Solution

Ambarella A5S

Video Coding

H.264 Main Profile
            MJPEG/JPEG Baseline

Dual-stream

Support

Image Resolution

Main stream:1920x1080 1080P
            Second stream:704x576 D1

Audio Coding

G.711ulaw

ONVIF Protocol

Support

NETWORK PROTOCAOL

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、
            UPnP、FTP、IPv6 (SIP,SRTP, optional)

Port

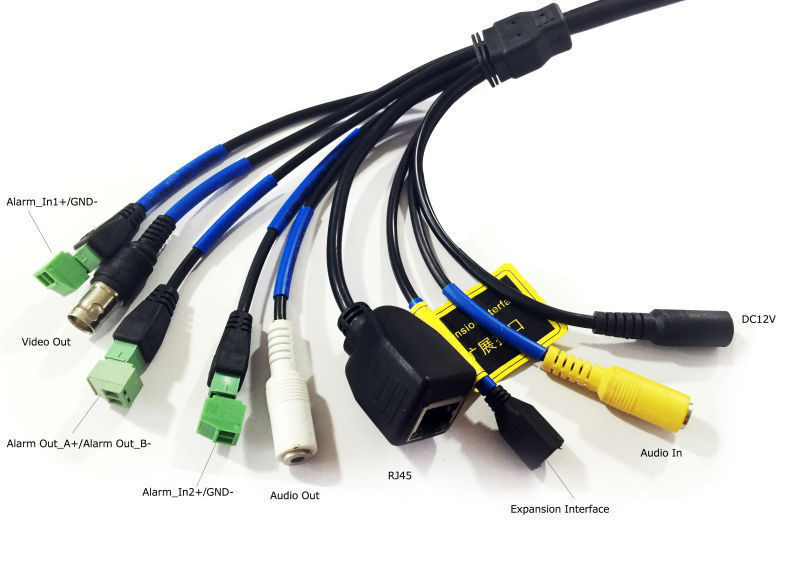

1 channel audio input, 1 channel audio output,1 channel alarm input,                         1 channel alarm output, 1channel network port, 1channel analog output,                         1channel power supply input
DOME PARAMETER

IR Distance

150m

Pan Range

360°

Tile Range

-10°~90° auto flip

Manual Speed

Horizontal: 0.01°/s - 350°/s,Vertical: 0.01°/s - 120°/s

Preset Speed

Pan: 350°/s,Tile: 120°/s

Preset

256

Auto Cruising

8 groups(32 Preset/group)

Auto Scan

8 groups(setup left and right boundary)

Pattern Scanning

4 groups

Auto-tracking

Support

Wiper

Support

Bracket

Wall mount/ Pendant mount

Junction Box

Optional

OSD Menu

English/Chinese

Timing function

Support

Alarm

4 inputs/ 2 outputs (Optional)

Power Supply

DC12V±10%

Power consumption

≤50W

Working Temp

-30℃ +60℃

Working Humidity

<95%, no condensing

Protection Level

IP66, the secondary lightning protection, 3000V anti-surge design

Weight

4.8kg

PACKINGLIST
Package Includes:

1 x 2.0MP Auto Tracking PTZ Speed Dome IP camera
1 x Power Adapter
1 x Bracket
1 x CD within manual and software
