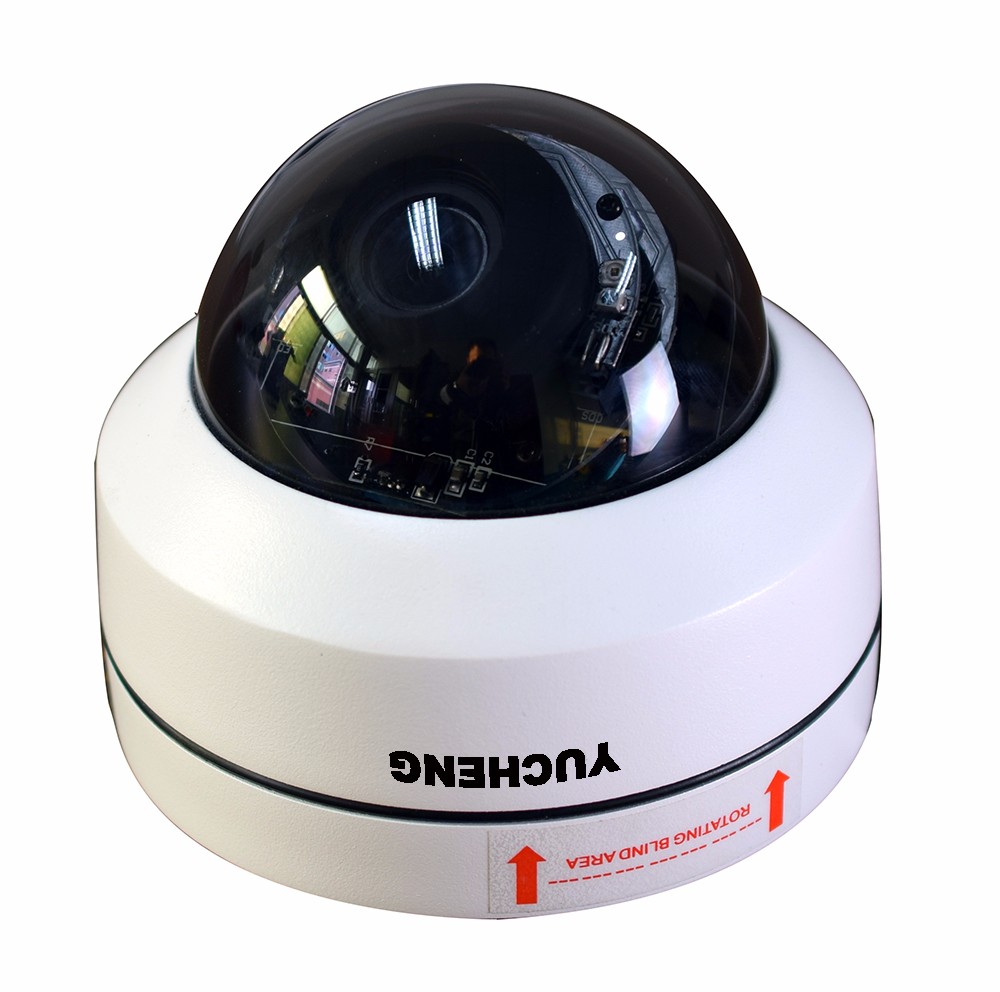

2.5inch Wireless 1080P 2.0MP 3X ZOOM outdoor PTZ IR DOME IP CAMERA


High sensitivity, High signal-to-noise, 1/2.8  2.0 MP SONY IMAX 323 Super Low illuminance COMS image sensor.3 x PCS High power infrared LED, IR night distance 30M.

High sensitivity micron 2.0 megapixel coms, Up to 1080P (1920*1080) resolutions.Dual H.264 Stream, resolution, frame rate, bit rate adjustable.LENS: 2 8-8mm 3x zoom lens

Supports 355 degree level  rotation , supports 60-degree vertical rotation ,25°/S.Support IP66 waterproof,Support ATEX Explosion proof.Support WIFI/802.11b/g/n wireless.Support 1-128GB SD card storage(need additional sd card)

Support audio input and output.Support Mobile phone remote preview and playback, and support mobile phone local snapshot and record.Support VLC player by RTSP, Support Global standard ONVIF.Support Static IP and DHCP

MainFeatures

>High sensitivity, High signal-to-noise, 1/2.8 2.0 MP SONY IMAX 323 Super Low illuminance COMS image sensor
>3 x PCS High power infrared LED, IR night distance 30M.
> High sensitivity micron 2.0 megapixel coms, Up to 1080P (1920*1080) resolutions.
>Dual H.264 Stream, resolution, frame rate, bit rate adjustable.
>LENS: 2 8-8mm 3x zoom lens.

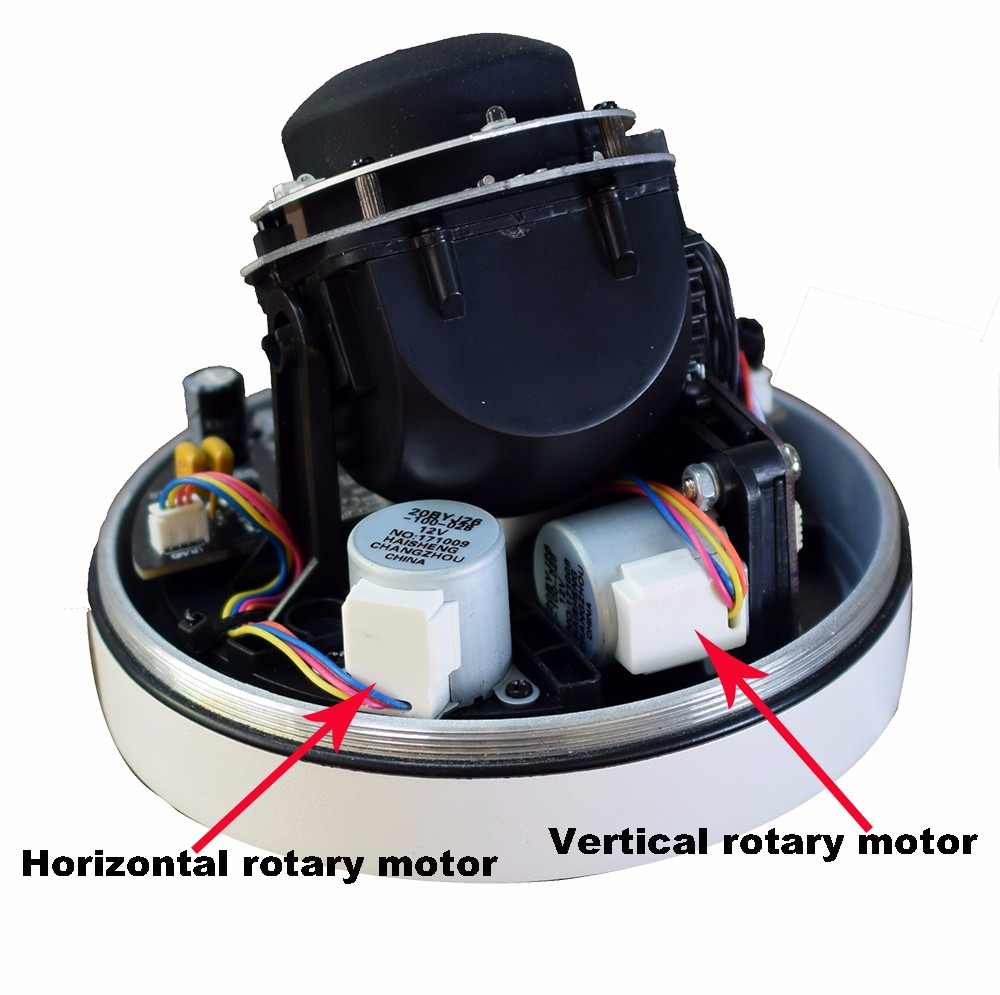

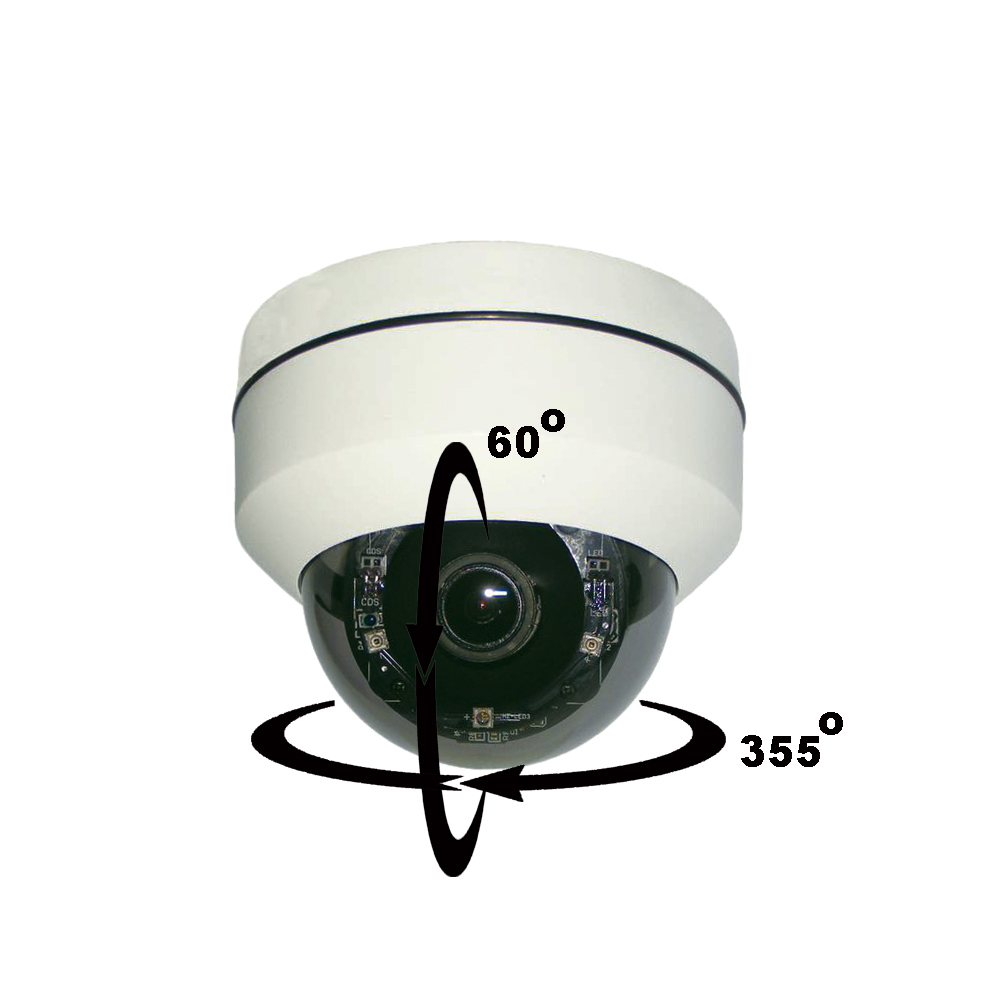

>Supports 355 degree level rotation , supports 60-degree vertical rotation ,25°/S.

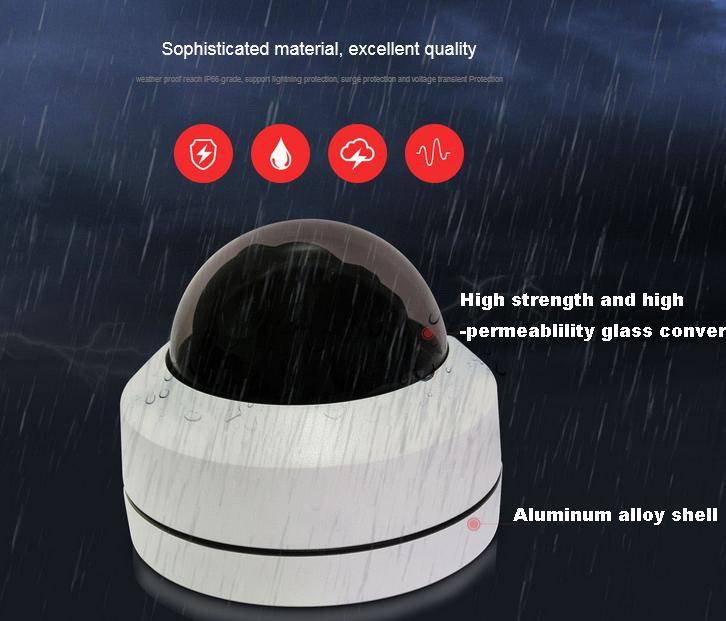

>Support IP66 waterproof,
>Support ATEX Explosion proof.

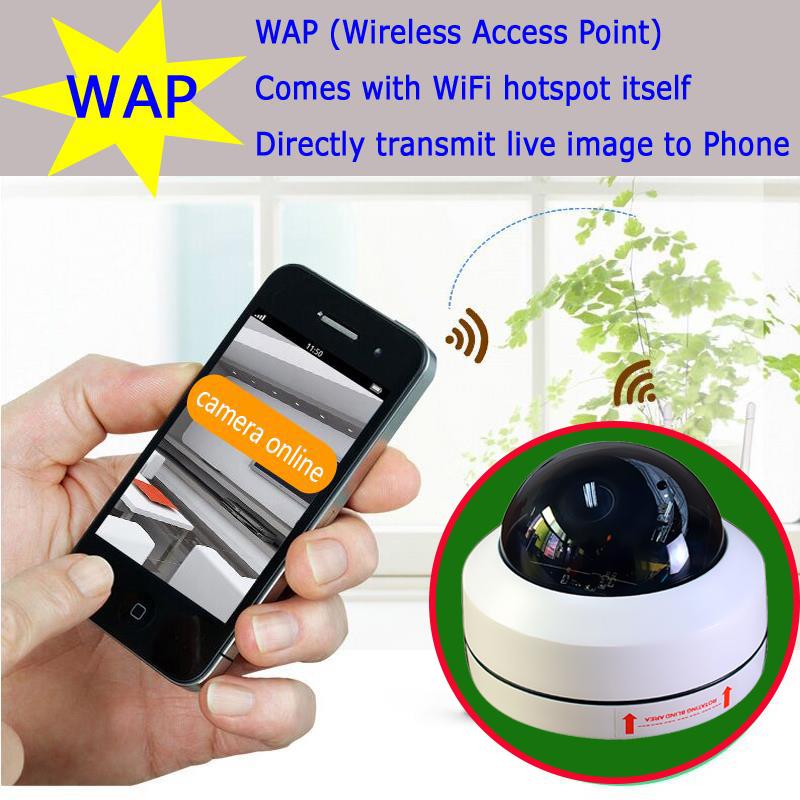

 >Support WIFI/802.11b/g/n wireless.
 >Support 1-128GB SD card storage(need additional sd card).
 >Support audio input and output.

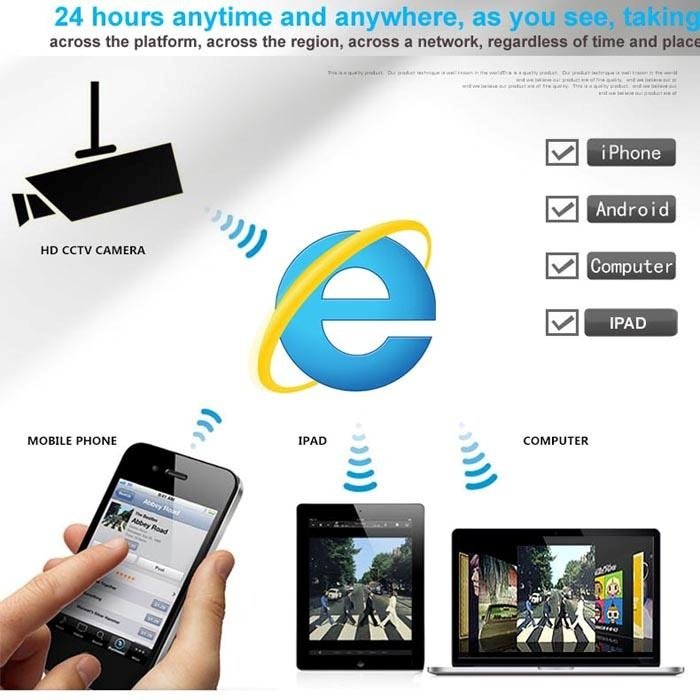

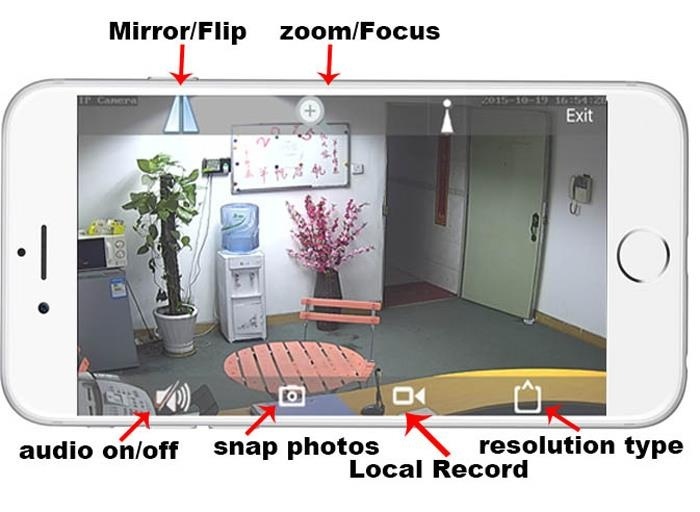

>Support Mobile phone remote preview and playback, and support mobile phone local snapshot and record.
>Support VLC player by RTSP, Support Global standard ONVIF.
>Support Static IP and DHCP.
>Support up to 12 users browsing at the same time(Each stream supports four users).

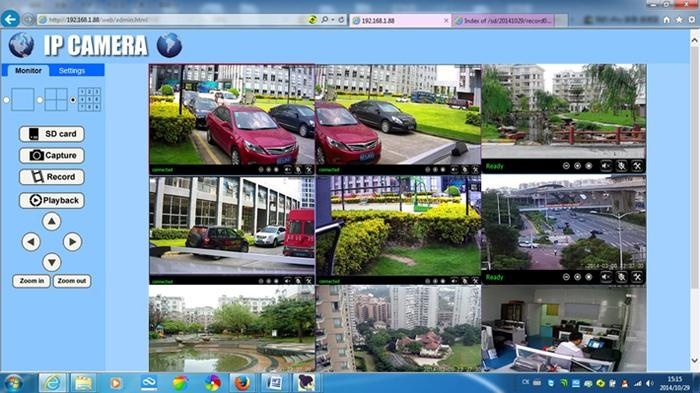

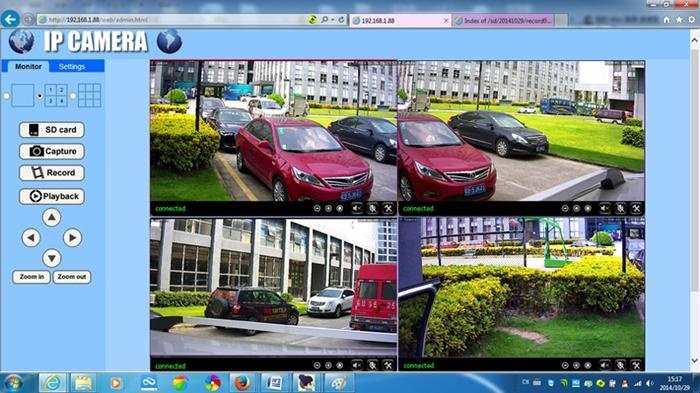

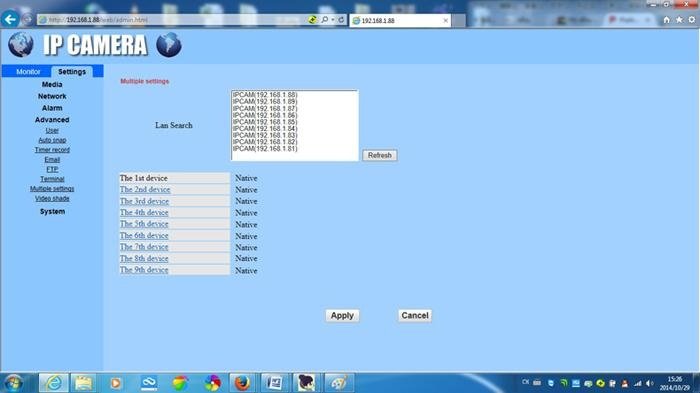

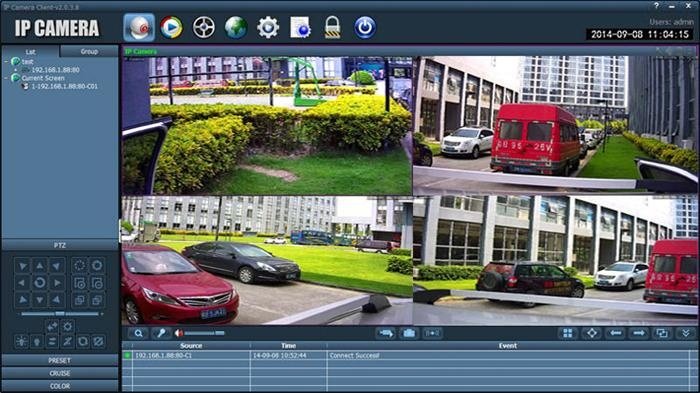

>Supports multiple images in the same browser, with the maximum support of 9 images (9 cameras).
>Support remote alarm linkage, sending email attaching picture and alarm information sent to the APP.
>Build in Motion Detection for 4 windows , Privacy Mask , image snapshot , Title OSD.
>Alarm picture upload to Email and FTP server,and support video upload to FTP.
>Onvif Compliant,support Blue Iris software.
>Smart Phone Support: iPhone, Windows Mobile, BlackBerry, Symbian, Android.


Specifications

OS

Parameters


kernel

System

Linux

Processor

HI 3516CV200

Video

Image sensor

1/2.8 2.0 MP SONY IMAX 323 Super Low illuminance COMS image sensor

Video Codec

H.264 main profile and baseline

LEN

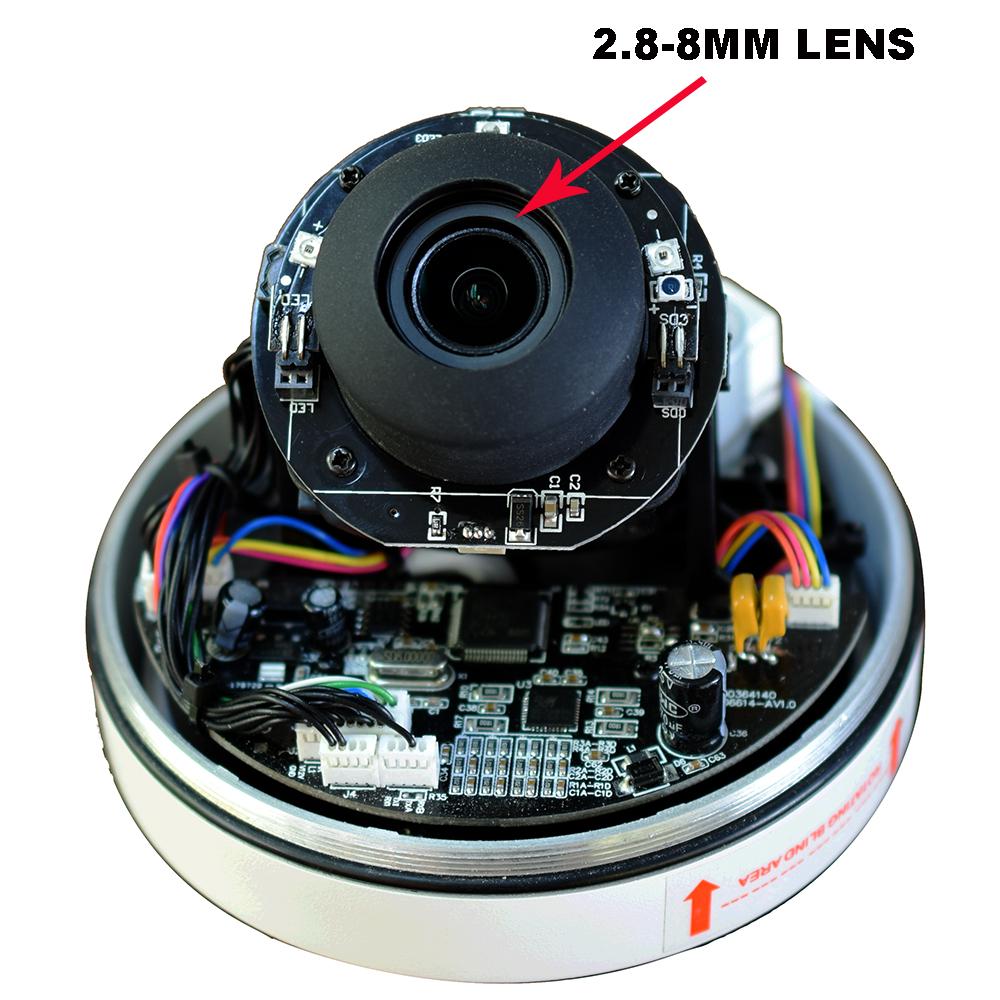

2.8-8mm zoom lens(3x zoom)

IR LED

3 PCS IR LEDs

IR distance

20M-30M

Support mobile phone

All phone

P2P

PHONE,IE,P2P Client global Internet

Video Resolution

1080P

First stream:1920*1080

Second stream:640x352

Three stream:320x176

frame rate

PAL:25fps(50HZ),NTSC:30fps(60HZ)

Video compression

32Kbits/S~6.2Mbits/S

Min.Lux

Color>0.01 LUX B&W<0 LUX

Store

SD card

support SD card Max support 128GB

Client/Browser

Support

Record

Client

support

Browser

Support

SD CARD

Support

Playback

Client

support

Browser

Support

SD CARD

Support

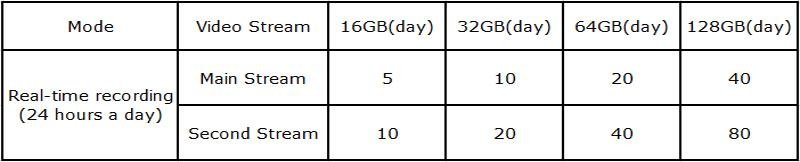

SD Card

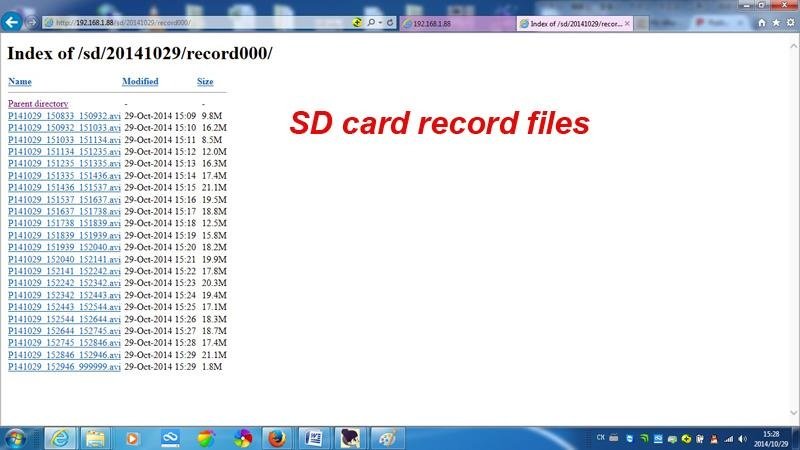

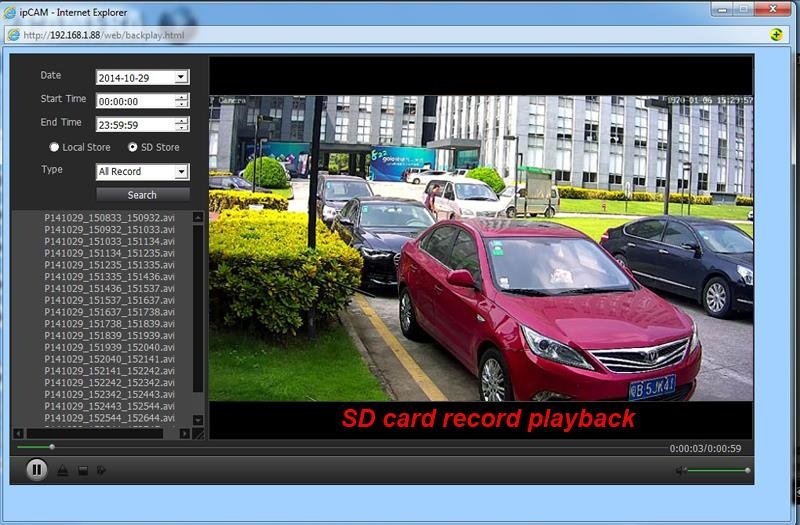

Support 1080P real-time record and playback

Support SD card recorded file copy to your computer

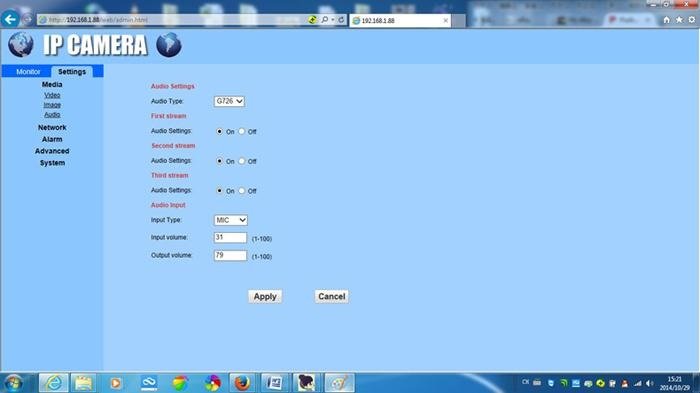

Audio

Audio input

support MIC input interface (need to add MIC)

Audio output

support speaker output interface(need to add speaker)

Audio Codec

G.726/G.711

Internet

Internet face

10Base-T/100Base-TX, WIFI/802.11b/g/n wireless

Network Protocol

TCP/IP,https,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP

Access Protocol

ONVIF

Alarm

Motion detection

At most 4 respective regions

Alarm linkage

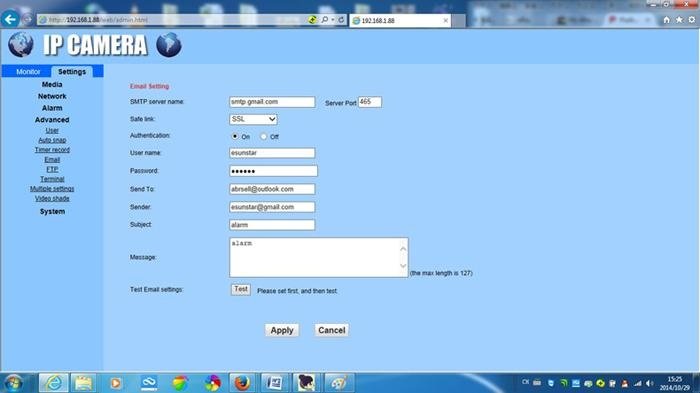

Alarm picture send E-mail, alarm images upload FTP server

Snap

Time snap

Regular support capturing images to the FTP server

safe

User management

Provide three levels of rights management (admin, user, guest), support to modify login user name and password

Other

Inter Power、consumption

DC12V 2A

Working temperature

-40℃ ~ +55℃

Working Humidity

10-95%




PACKINGLIST

Package Includes:

1 x 2.0MP WIFI IP Camera

1 x Bracket

1 x Power Adapter

1 x CD within manual and software

tina other

c-tina-feature

c-tina-feature

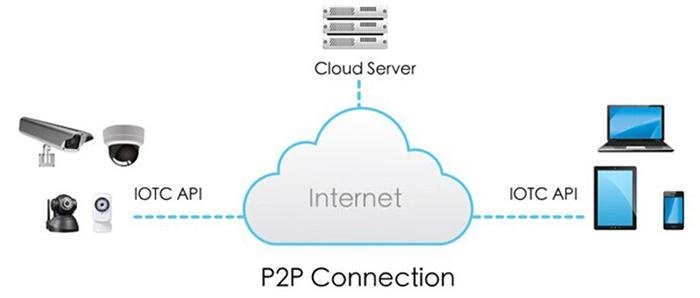

P2P Connection

IOTC (Internet of Things Cloud) Platform is a total solution for P2P (peer-to-peer) connection. A totally new concept in IoT connection, IOTC provides robust cross-platform connection based on P2P network connection architecture and advanced cloud computing technology via API (Application Programming Interface). Developers can utilize ready-to-use APIs to establish and develop connection between different devices and even across different operating systems.

Previously, since most network devices connections were based on Dynamic IP, DDNS (Dynamic Domain Name Service) and Port mapping were required for internet connection, an overly complicated system for non-professional users. As a result, progress in development of applications connecting to varied IP devices was severely inhibited, especially for consumer markets.

Currently, however, the IOTC Platform enables all manner of network devices, such as mobile phones, PCs, home electronic appliances, network-related facilities, smart home products, and surveillance products to easily and efficiently connect to each other, presenting an ideal solution for rapid and effective development of IoT-related products
            We offer this P2P cloud services in the global , we set up P2P cloud server in Taiwan and the United States, Not only in China.

day-night-switch

IR-CUT-comparision

WYQCOMMON3

tina-S31RB

7 tina-installation

TINA-connection-a-bullet

TINA-connection-b-bullet

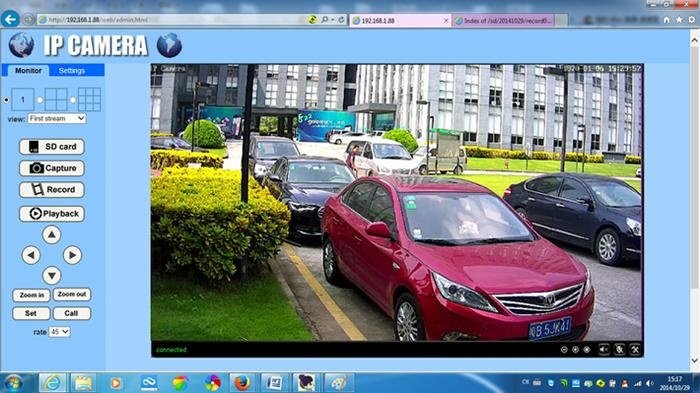

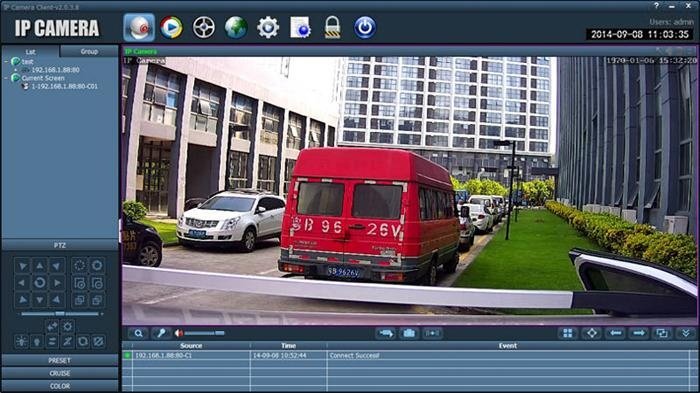

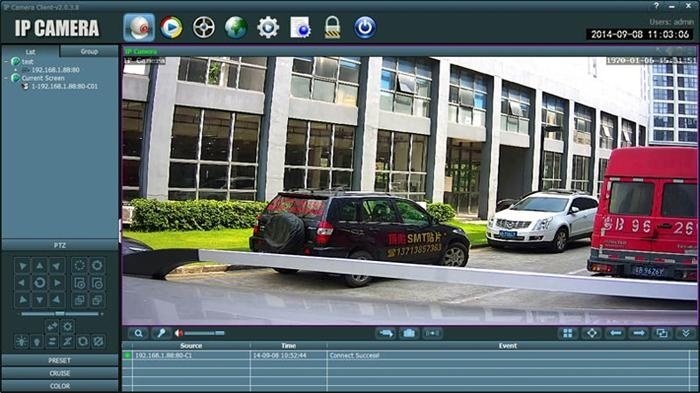

Client software

TINA 03

TINA 04

TINA 04

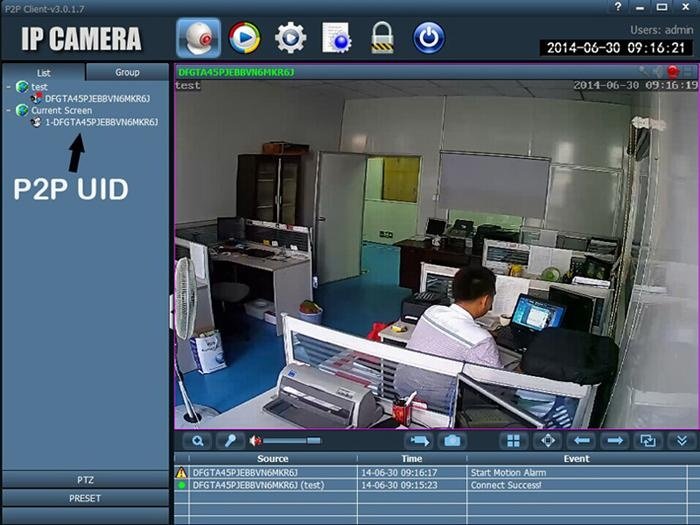

P2P Client

TINA 04

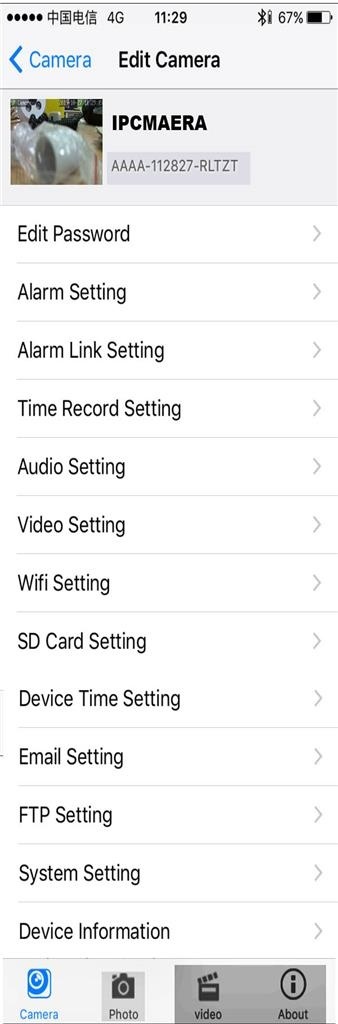

Phone Client

TINA 04

Coming soon!

Package Includes:

1 x 2.0MP WIFI PTZ IP Camera

1 x Bracket

1 x Power Adapter

1 x CD within manual and software
