- 20x zoom PTZ IP camera
-
-
-

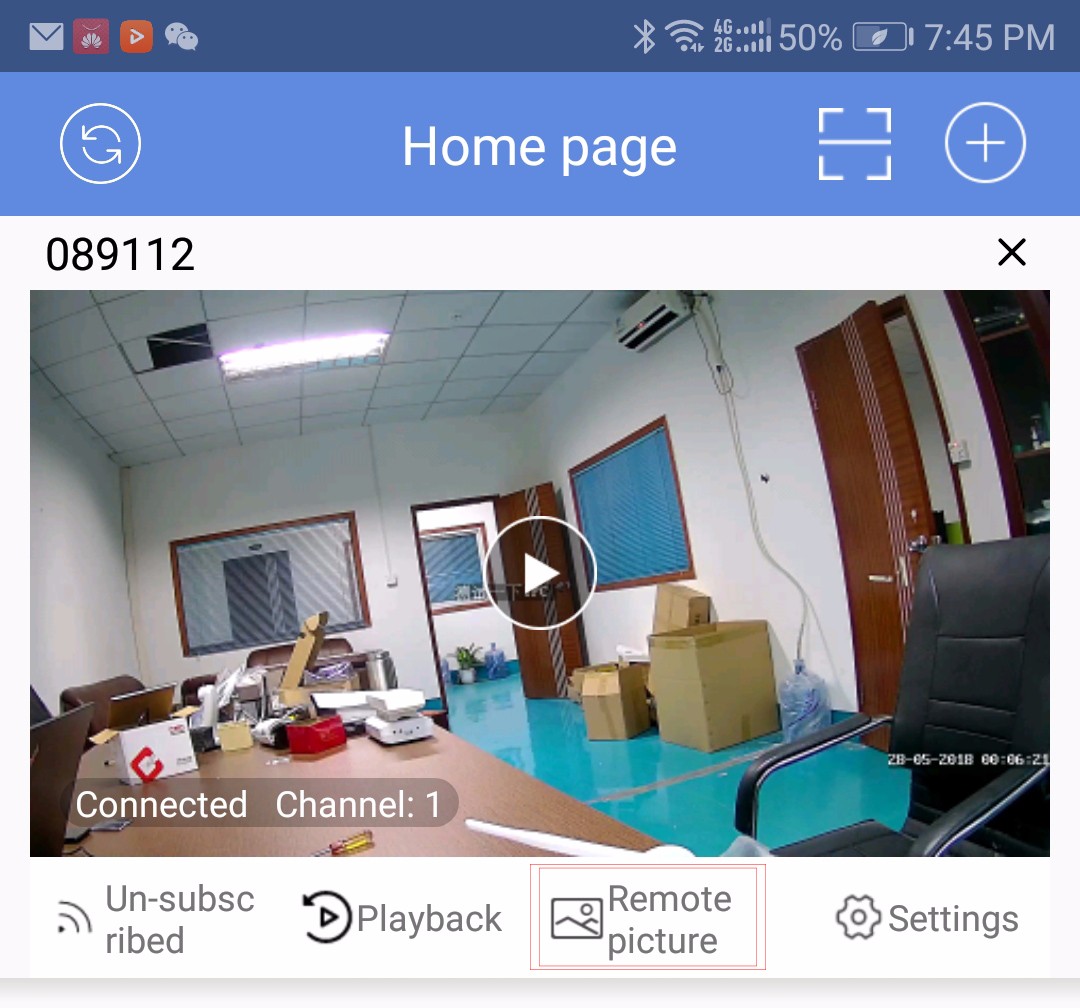

 | The camera, Mobile phone surveillance become very simple, you only need to download an APP installed on your mobile phone, and scan the qr code of the camera body can achieve remote surveillance phone. Mobile phone surveillance software support rich parameter Settings, no matter you are the end user, or dealers, remote assistance become very easy. You can preview surveillance video , also can view the video and image files on your phone, if you connect the audio equipment, you can also realize the bidirectional audio listening. It is important to note that remarkable function can you use your mobile phone is connected to the camera, and the connection speed is beyond imagination , from the moment you click on the start, just can see the surveillance video within 2 seconds. More surprise is the camera APP phone software can use your personal social software for login, such as: twitter social software. |
 | Our wireless camera not only support WIFI connection, and provide excellent wireless hotspot service. It is like a wireless router, use your mobile phone easily to search the camera with WIFI hotspot signal, if you are connected to the WIFI hotspot, your mobile phone and camera network connection is established. At this point your phone can easily realize the video monitoring. Even without the Internet, the camera can connect to the phone in this mode. It is worth mentioning that use of this function, you can easily configure your camera on your mobile phone, and get rid of complex computer programming Settings |

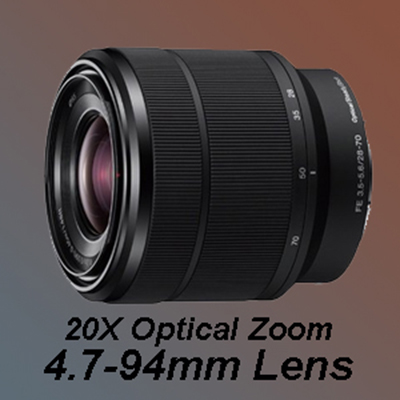

 | 3.0 mp hd 20 x optical zoom lens with a 4.7-94 - mm focal length range, it can effectively capture to within 100 meters of objects, efficient focusing algorithm, to ensure that in the whole process of zoom can still provide clear images. Let you grasp every wonderful moment. Even MAX ZOOM, focusing speed is amazing. |
 | |

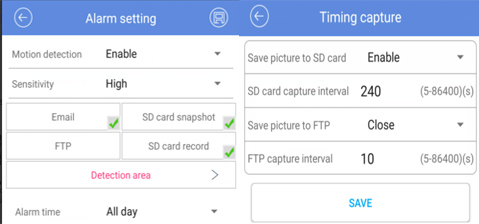

 | 该摄像机支持报警抓拍和定时抓拍,你能设置当摄像机触发报警后实现抓拍功能和定时抓拍功能,让你只在你需要的时候让摄像机拍照,获取你更想要的信息.过滤掉繁杂的图片搜索.让图片预览变得简单有效. |
 | 该摄像机支持手机APP远程图片查看功能,包括查看移动侦测和定时抓拍的所有图片.并可以保存到本地分享给你的家人和朋友.如果你只想每天看看天气和有多少访客,但又不想使用录像?不想随时打开手机?使用本功能是你最佳的选择,你可以在手机APP软件上设置定时抓拍功能,可以设置任何时间间隔定时抓拍.每天你只需要打开手机查看这些抓拍的图片. |
Main features:
1/3 SONY IMAX 323 Super illuminance COMS image sensor +Hi3518EV200 CPU
>8x PCS High power infrared LED, IR night distance 100M.
>Three streams are provided and resolution, frame rate, bit rate adjustable.
The first stream is used for LAN or Wan HD monitoring.
The second stream is used for remote user monitoring preview.
The third stream is used for Remote monitoring of poor network speed
>LENS: 4.7-94mm 20x zoom lens.

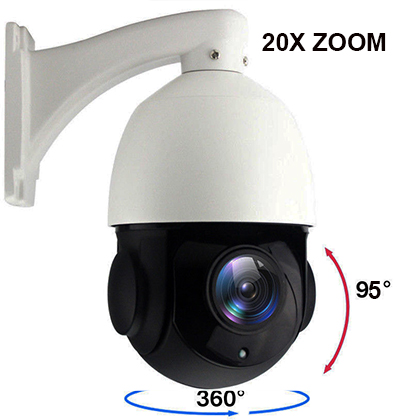

>Supports 360 degree level rotation , supports 95 degree vertical rotation .
>Support IP66 outdoor waterproof,
>Support 2.4G WIFI/802.11b/g/n wireless connection
> Support wireless wifi hotspot(AP)
>Support 1-128GB SD card storage(need additional sd card).
>Support audio input and output.(need additional MIC and speaker)
>Support SD card remote Motion detecting and timing snapshot
>Support Remote SD card pictures viewer and download (Motion detection snapshot and timing snapshot images)
>Offer 500M SD card storage space for image snapshot(Motion detection snapshot and timing snapshot)
>Support Mobile phone remote preview and playback, and support mobile phone local snapshot and record.
>P2P mobile phone remote It is the industry has the fastest connection speed and can open the image in 2 seconds.and support phone App alarm info sending.
>Support VLC player by RTSP, Support Global standard ONVIF.
>Support Static IP and DHCP.
>Support up to 12 users browsing at the same time(Each stream supports four users).
>Support remote alarm linkage, sending email attaching 3 pictures and alarm information sent to the APP.
>Build in Motion Detection for 4 windows , Privacy Mask , image snapshot , Title OSD.
>Alarm picture upload to Email and FTP server,and support video upload to FTP.
>Onvif Compliant,support Blue Iris software.
>Smart Phone Support: iPhone, Windows Mobile, BlackBerry, Symbian, Android.
>Mobile phone APP support Rich feature set, you only need mobile phone, you can achieve all the camera configuration, away from the complex browser Settings and computer software Settings,install camera is so easy!
>Support Remote images and video sharing.

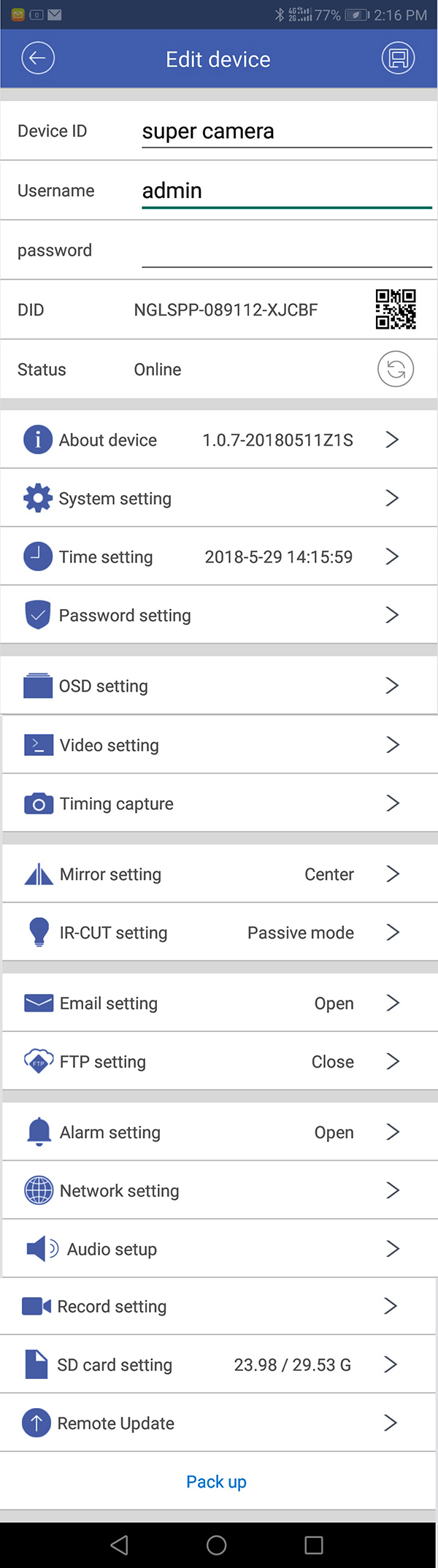

>Mobile APP support:about device review,system setting,Password setting,OSD setting,Video setting,Timing Capture,Mirror setting,IR led setting,Email setting,FTP setting,Alarm setting,Wifi setting,Network setting,Audio seting,Recording setting,SD card setting,cloud upgrade etc.
>A mobile phone can satisfy all your fantasies about cameras
Technical parameters:
Model | P02Z9WL4 |
Resolution | 1080P(1920*1080) |
System | Linux |
Processor | HI 3518E V200 |
Image sensor | 1/2.8 SONY IMAX 323 Super Low illuminance image sensor |
Video Codec | H.264 + main profile and baseline |
LEN | 20x zoom |
IR LED | 8 PCS IR LED |
IR distance | 100M |
Support mobile phone | All smart phone |
P2P Cloud connection | Mobile PHONE APP,browser,P2P Client global Internet |
Video Resolution | First stream：1920*1080 |
Second stream：704*576(D1) | |
Three stream：320x176 | |
Frame rate | PAL:25fps,NTSC:30fps |
Bit rate | 32-8192kbps |
Min.Lux | Color>0.001 LUX B&W=0 LUX |
SD card | Support MAX128GB |
LAN Client softwawre | IP Camera Client,Blue Iris software and other IP camera client with ONVIF |
P2P Client | No matter when, no matter where, as long as there is network, can you open the computer and install the P2P software , you can easily access and control your remote cameras. And this is don't need any network configuration |
Support Browser | MS Internet Explorer,Firefox,google browser,and support record and playback in Browser,and support Management 9 cameras in the same Browser |
OSD | Support OSD character stack.You can set the time and channel name display or not |
Image settings | You can adjust the parameters of image Brightness, Saturation, Contrast, Sharpness, Exposure, Gamma, Distortion, Flip, Mirror, WDR, Shutter and Noise |
Audio | Support G711 and G726 Coding format,and support 3 streams audio in and output |
IP address | Support Automatic access and customization ip address |
LAN interface | Wifi wireless ,RJ45 10Base-T/100Base-TX, WIFI/802.11b/g/n wireless |
Wireless | Support 2.4G WIFI IEEE802.11B/G/N ,Security mode:WEB ,WPA+PSK,WPA2+PSK |
WIFI hotspot(PA) | Support Wifi hotspot,If you don't have a network, you can use your phone to connect to your camera by wireless hotspot. |
Network Protocol | TCP/IP，https，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP |
Access Protocol | ONVIF |
DDNS | Support third-party DDNS parsing services. |
Mobile App | Support setting:about device review,system setting,Password setting,OSD setting,Video setting,Timing Capture,Mirror setting,IR led setting,Email setting,FTP setting,Alarm setting,Wifi setting,Network setting,Audio seting,Recording setting,SD card setting,cloud upgrade etc. |
Snapshot(auto snap and timing snap) | Support Remote timing snapshot,and support mobile view images |
Moving detection snapshot | |
Time | Support :time.windows.com,time.nist.gov ,time.kriss.re.kr,time.nuri.net etc. ,Network Time Protocol |
Motion detection | At most 4 respective regions |
Alarm linkage | E-mail Alarm and Send with Picture , Save Picture on the FTP Server , Save Video on the FTP Server , Relay out , Save Picture on the SD Card , Save Video on the SD card ,alarm send message to mobile phone APP |
Record | Support computer local record,SD card record,Browser record,FTP record,P2P client software record.Video recording includes: timing record,motion detection record,Schedule record,alarm record |
Playback | Support SD card record playback,support SD card images playback |
User management | Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
Inter Power、consumption | DC12V 3A |
Working temperature | -40℃ ～ +55℃ |
Working Humidity | 10-95% |
Software:
Mobile APP:
