- 5MP WIreless auto tracking PTZ IP CAMERA
-
20X ZOOM Camera Main features:
1/3 SONY 5MP IMAX starlight 335 Super illuminance COMS image sensor +Hi3516DV100 CPU
Video Resolution:2560*1920,2560*1440,2048*1536,1920*1080,1280*720
LENS: 4.7-94mm 20x zoom lens.
Horizontal rotation speed: 240/S ,Vertical rotation speed: 240/S360 degree horizontal rotation and vertical 95 degree rotation.
Humanoid recognition alarm recording and moving object tracking function
-
-
Why choose us?
1, true 20x optical zoom. Never exaggerate the 30X optical zoom, because the 4-inch camera can not put down the 30x zoom lens. not enough space.
2, the real SONY chip, excellent star-level effect. Let you see the color picture at night

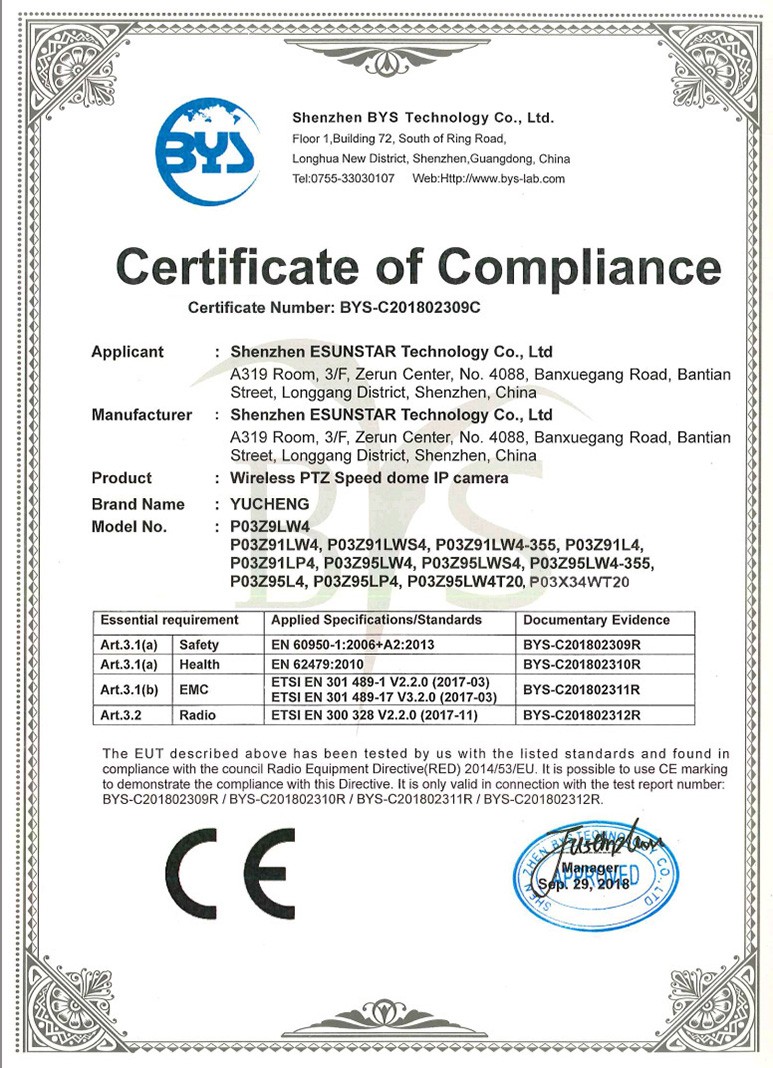

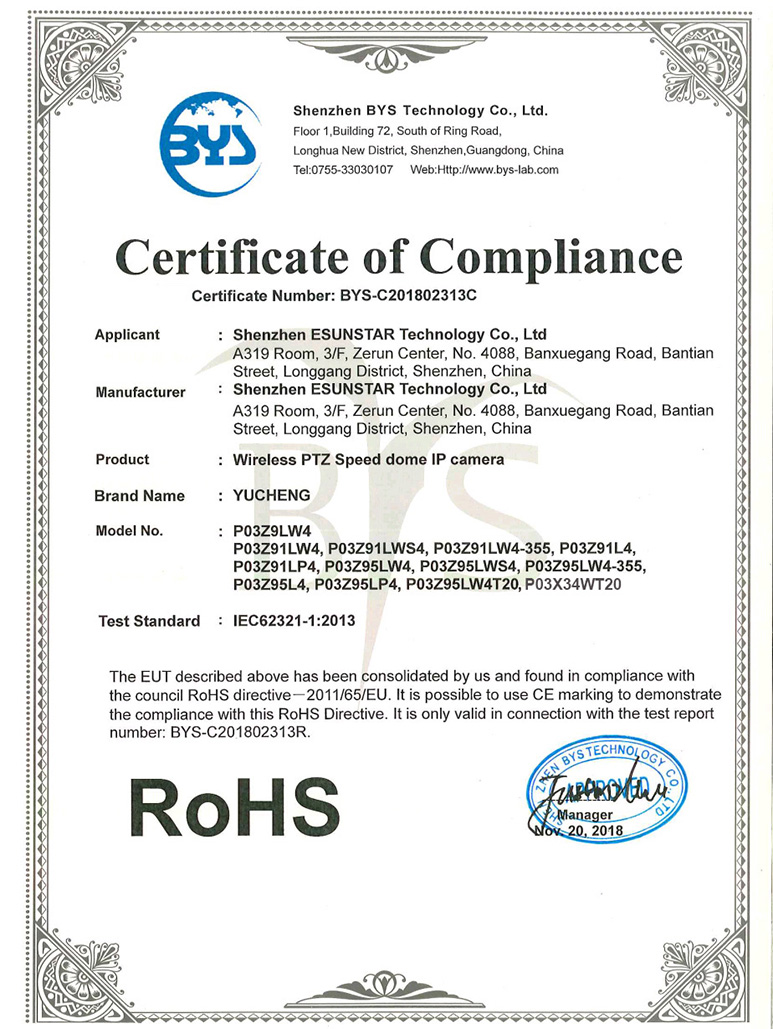

3, registered trademarks, complete certification. The quality is safe and reliable.
4, UPC code can trace the source of production globally.
5，Independent research and development, independent production and independent sales. Can provide customers with a full range of technical services.
20X ZOOM Camera Main features:
1/3 SONY IMAX starlight 5MP 335 Super illuminance COMS image sensor +Hi3516DV100 CPU
Resolution:2560*1920,2560*1440,2048*1536,1920*1080,1280*720
Three streams are provided and resolution, frame rate, bit rate adjustable.
The first stream is used for LAN or Wan HD monitoring.
The second stream is used for remote user monitoring preview.
The third stream is used for Remote monitoring of poor network speed
>LENS: 4.7-94mm 20x zoom lens.
>Support 2.4G WIFI/802.11b/g/n wireless connection
>Support for humanoid recognition and automatic tracking
> Support wireless wifi hotspot(AP)
>Support 1-64GB SD card storage(need additional sd card).
>Support build in Mic and Support Audio output.
>Support SD card remote Motion detecting and timing snapshot
>Support for audible alarms: dog barking, alarms and custom audible alarm outputs
>Offer 500M SD card storage space for image snapshot(Motion detection snapshot and timing snapshot)
>Support Mobile phone remote preview and playback, and support mobile phone local snapshot and record.
>P2P mobile phone remote It is the industry has the fastest connection speed and can open the image in 2 seconds.and support phone App alarm info sending.
>Support VLC player by RTSP, Support Global standard ONVIF.
>Support Static IP and DHCP.
>Support up to 12 users browsing at the same time(Each stream supports four users).
>Support remote alarm linkage, sending email attaching 3 pictures and alarm information sent to the APP.
>Build in Motion Detection for 4 windows , Privacy Mask , image snapshot , Title OSD.
>Alarm function support: SD card recording, SD card capture, Email mailing, FTP image uploading, voice alarm, APP mobile push, etc.
>Onvif Compliant,support Blue Iris software.
>Smart Phone Support: iPhone, Windows Mobile, BlackBerry, Symbian, Android.
>Support Remote images and video sharing.
>Mobile APP support:about device review,system setting,Password setting,OSD setting,Video setting,Timing Capture,Mirror setting,IR led setting,Email setting,FTP setting,Alarm setting,Wifi setting,Network setting,Audio seting,Recording setting,SD card setting,cloud upgrade etc.
>A mobile phone can satisfy all your fantasies about cameras
PTZ Speed dome Main features:
>11x PCS High power infrared LED, IR night distance 150M.
>Supports 360 degree level rotation , supports 95 degree vertical rotation .
>Support IP66 outdoor waterproof,
>Support 256 preset Set and call
>Support preset delete
>Support Auto scan(Horizontal rotation). the lever of 360 degree clockwise
>automatic scanning,and support modify speed of Auto scan
>Support 5 sets of preset cruise function,Support Modify the stay time of the Cruise and Modify speed of the Cruise
>Left and right limit scan settings.Support Modify the stay time of the >scan and Modify speed of the scan
>Support Idle action settings
>Support Watch(home) position setting
>Support IR light Control settings:Open ,Close,Auto,IR detection threshold setting,IR brightness adjustment.
Technical parameters:
Model | P02Z95LW4T20 |
Resolution | 5MP":2560*1920,4MP:2560*1440,3MP":2048*1536,2MP:1920*1080,720P:1280*720 |
System | Linux |
Processor | HI 3516D V100 |
Image sensor | 1/2.8 SONY IMAX 335 Super Low illuminance image sensor |
Video Codec | H.265 /264main profile and baseline |
LEN | 20x zoom |
IR LED | 11 PCS IR LED |
IR distance | 150M |
Support mobile phone | All smart phone |
P2P Cloud connection | Mobile PHONE APP,browser,P2P Client global Internet |
Video Resolution | First stream：2560*1920,2560*1440,2048*1536,1920*1080,1280*720 |
Second stream：1280*720,704*576,640*380 | |
Three stream：320x176 | |
Frame rate | 5MP:15fps,4MP:25fps,3MP:25fps,1080P:25fps,720P:25fps |
Bit rate | 32-8192kbps |
Min.Lux | Color>0.03 LUX B&W=0 LUX |
SD card | Support MAX64GB |
LAN Client softwawre | IP Camera Client,Blue Iris software and other IP camera client with ONVIF |
P2P Client | No matter when, no matter where, as long as there is network, can you open the computer and install the P2P software , you can easily access and control your remote cameras. And this is don't need any network configuration |
Support Browser | MS Internet Explorer,Firefox,google browser,and support record and playback in Browser,and support Management 9 cameras in the same Browser |
OSD | Support OSD character stack.You can set the time and channel name display or not |
Image settings | You can adjust the parameters of image Brightness, Saturation, Contrast, Sharpness, Exposure, Gamma, Distortion, Flip, Mirror, WDR, Shutter and Noise |
Audio | Support G711 Coding format,and support 3 streams audio in and output |
IP address | Support Automatic access and customization ip address |
LAN interface | Wifi wireless ,RJ45 10Base-T/100Base-TX, WIFI/802.11b/g/n wireless |
Wireless | Support 2.4G WIFI IEEE802.11B/G/N ,Security mode:WEB ,WPA+PSK,WPA2+PSK |
WIFI hotspot(PA) | Support Wifi hotspot,If you don't have a network, you can use your phone to connect to your camera by wireless hotspot. |
Network Protocol | TCP/IP，https，TCP，ICMP，UDP，ARP, IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP |
Access Protocol | ONVIF |
DDNS | Support third-party DDNS parsing services. |
Mobile App | Support setting:about device review,system setting,Password setting,OSD setting,Video setting,Timing Capture,Mirror setting,IR led setting,Email setting,FTP setting,Alarm setting,Wifi setting,Network setting,Audio seting,Recording setting,SD card setting,cloud upgrade etc. |
Snapshot(auto snap and timing snap) | Support Remote timing snapshot,and support mobile view images |
Moving detection snapshot | |
Time | Support :time.windows.com,time.nist.gov ,time.kriss.re.kr,time.nuri.net etc. ,Network Time Protocol |
Motion detection | At most 4 respective regions |
Alarm linkage | E-mail Alarm and Send with Picture , Save Picture on the FTP Server , Save Video on the FTP Server , Relay out , Save Picture on the SD Card , Save Video on the SD card ,alarm send message to mobile phone APP |
Record | Support computer local record,SD card record,Browser record,FTP record,P2P client software record.Video recording includes: timing record,motion detection record,Schedule record,alarm record |
Playback | Support SD card record playback,support SD card images playback |
User management | Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
Inter Power、consumption | DC12V 3A |
Working temperature | -40℃ ～ +85℃ |
Working Humidity | -10-95% |
Package list:
1x 5MP atuo tracking
1x power adapter
1x manual and all software
